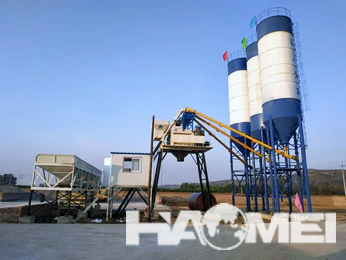

What equipment do concrete mixing plants need?

As we all know, there are many types of concrete mixing plants, including hzs25, hzs35, hzs50, hzs60, hzs75, hzs90, hsz120, hzs180, etc. Each type of equipment can adopt different equipment configurations according to different needs of customers to ensure production efficiency and production quality. The following are the equipment needed for concrete mixing plant:

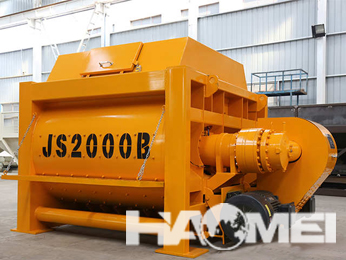

1. Concrete mixing plant host

Concrete mixer is a kind of equipment that fully mixes raw materials such as cement, sand, gravel, water and admixtures, and then produces concrete. It is mainly composed of main reducer, main motor, electric thick oil pump, hydraulic station group, liner and blade, mixing barrel and unloading mechanism, etc. The general concrete production industry is mainly equipped with a twin-shaft forced concrete mixer, which has the advantages of low noise, low energy consumption, compact structure, easy operation, good mixing quality, and high efficiency. It can mix fluidity, semi-dry hardness and dry hardness. concrete. Specific models (JS500, JS750, JS1000, JS1500, JS2000, JS3000, JS4000, etc.) can be selected according to the actual needs of users.

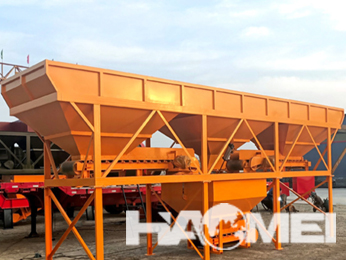

2. Concrete batching machine

The batching machine is the necessary equipment for the production of high-quality concrete in the concrete mixing plant. The batching machine is mainly composed of a belt conveyor electric drum, a belt conveyor tailstock, a flat belt, a weighing bucket, a storage bin, a vibrator, and a cylinder. The working principle is that the material of the mixing station in the silo is discharged from the bottom door of each silo into the weighing hopper for weighing, and after the weighing is completed, it is transported to the mixing system through a flat belt conveyor.

3. Weighing system

The weighing system is a key part of the quality and cost in the production process of concrete mixing plants, mainly composed of gravel weighing, water weighing, cement weighing, coal ash powder weighing and admixture weighing. The weighing system transmits the signal line to the control system through the sensor to control the weight of the raw material.

4. Conveyor system

The conveying system is mainly to convey the raw materials to the mixing host part, and the conveying methods of different materials are different. The sand and gravel materials are conveyed to the mixer by the belt conveyor after weighing; the powder materials such as cement and fly ash are conveyed to the weighing hopper by the screw conveyor for weighing, and then sent to the mixer; the water is conveyed by the pump through the pipeline to the water weighing machine. The admixture is weighed in the hopper and then sent to the mixer; the admixture is delivered to the weighing hopper by the admixture pump through the pipeline for weighing, and then sent to the mixer.

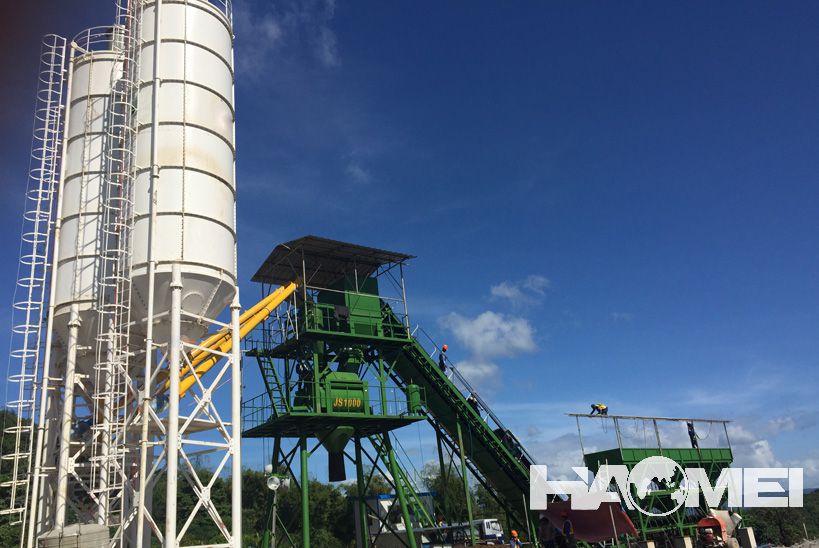

5. Cement silo

Cement silos are equipment for storing powdery materials such as fly ash and cement water. There are many types of cement silos. Users can choose the quantity and model of cement silos according to the actual production capacity of the mixing plant. There is a material level indicator device on the upper part of the cement silo, and a signal light on the lower part. When the lower signal light is on, the powder conveying should be stopped immediately. There is a dust removal device on the upper part of the cement bin of the concrete mixing station to prevent the dust from directly entering the atmosphere and polluting the environment.

6. Control system

The control system of the batching plant adopts an industrial computer. According to the specific production process and ratio requirements, the production data information is recorded and stored in real time through software and transmission signals, and production documents and production reports can be printed at any time, as well as raw material loss statistics.

The above is a detailed introduction to the configuration of the concrete mixing plant. If you have the need to purchase a concrete mixing plant and a concrete mixer, you are welcome to contact us by email at any time. The Haomei Machinery concrete mixing plant is fully equipped and has many models.
