Products

+-

Self Loading Concrete Mixer 2.6 Cubic

  •

    Production Capacity: 2.6 Cubic Meter/Drum

  •

    Discharge Capacity: 2600L

  •

    Rated Power: 78kw

  •

    Fuel tank: 75L

Description

Self loading cement mixer for sale can achieve self loading, metering, automatically add water to stir, conveying and discharging, and can finish the delivery and site construction work. It can work without power supply, because the whole machine will supply sustainable power source. In addition, it uses drum stirring system, so it has good uniformity. Haomei self loading concrete truck mixer is like a combination of present concrete mixer and concrete batching plants.

In some special construction projects, which is far away from commercial concrete batching plant, such as, maintenance of concrete pavement road, bridge tunnel construction, township level highway construction, construction of defense facilities, high speed railway construction, maintenance of plant or building floor construction, etc, it will be equipped with on-board lighting system, and can achieve 24 hours construction work and improve the working efficiency. In addition, as one of the most reliable self loading concrete truck mixer suppliers, we will offer users the best solution of concrete mixing, delivering and placing.

1.Advantages of Self Loading Concrete Mixer 2.6 Cubic:

(1).The main hydraulic components are imported;

(2).At least 5 workloads are saved per day;

(3).Save electricity 100 degrees everyday without a blender;

(4).Don’t need concrete mixer truck;

(5).Don’t need wheel loader for feeding;

2.What we can do for you when you buying a self loading concrete truck mixer?


(1). Detailed Production introduction, including each part;
(2). Welcome you to visit our self loading concrete mixer truck factory;
(3). Show you real machine production process, working process of self loading concrete mixer truck;
(4). Teach you or your operator how to handle self loading concrete mixer truck;
(5). One year warranty and spare parts supply.

Specification

The Parameters of Self Loading Concrete Mixer 2.6 Cubic:

Self Loading Concrete Mixer 2.6 Cubic
SpecificationValue
Equipment Model2.6 cubic self loading concrete mixer
Drum geometrical capacity3580L
Discharge Capacity2600L
Engine ModelYuchai 4102 Turbo-Charged
Rated Power78kw
Gear box modelZL-280 power shift transmission
Gear4 forward 4 back
Fuel tank75L
Total hydraulic system capacity75 liters
Oil tank16 liters
ReducerHJ80-43
Hydraulic PumpCBG9 2050/2032
Hydraulic MotorBM5-160
Water tank500L
Water supplyTime relay
Overall dimensions(L*W*H)7800*2720*3000
Wheelbase (mm)2615
Curb Weight (kg)6500
Drive FormTorque converter
Drum rotate270º
Drum Mixing Speed (r/min)13
Maximum grade30º
Chassis Max.Speed (km/h)30
Maximum turning radius (mm)5300
Minimum ground clearance (mm)380

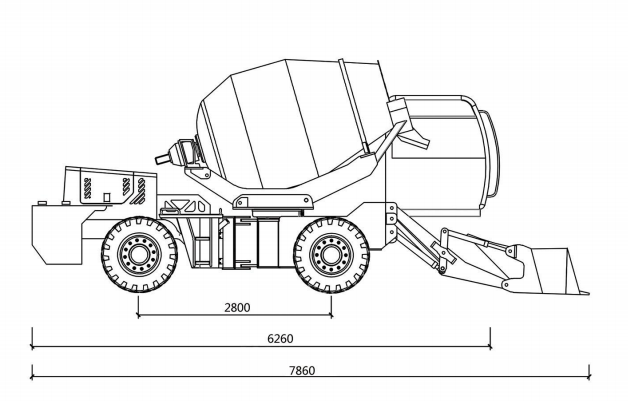

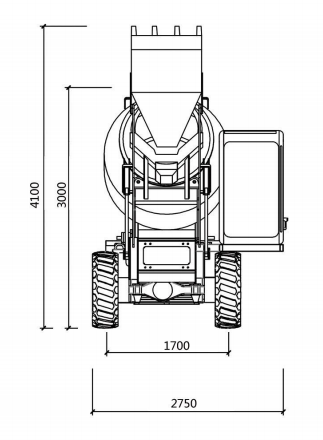

Drawing
