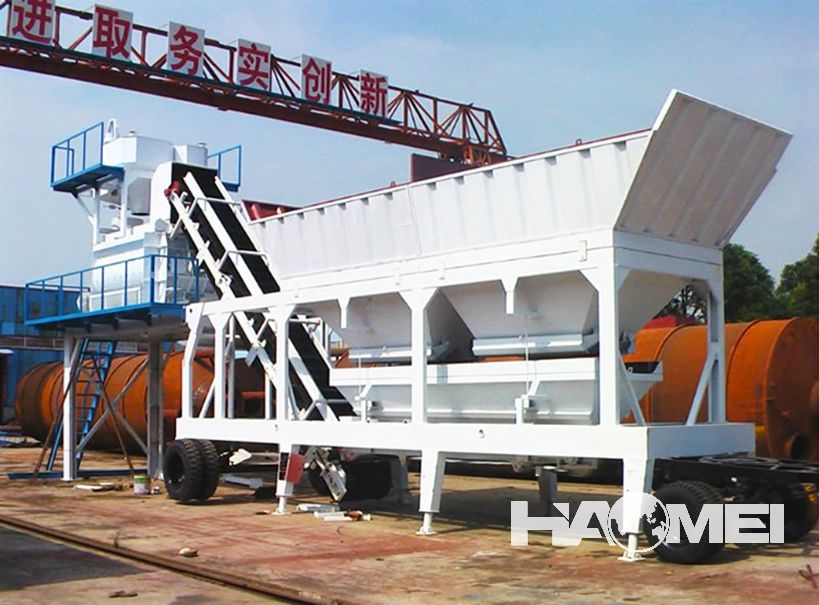

Configuration of yhzs mobile concrete mixing plant

The yhzs mobile mixing plant developed and produced by Haomei Machinery has the characteristics of convenient site movement, high output, simple and quick equipment installation and disassembly, etc., and has become a popular type for engineering projects. Haomei Machinery can provide various models for customers to choose: yhzs25, yhzs35, yhzs60 , yhzs75, etc. What are the configurations of the yhzs mobile concrete mixing plant? The following is a detailed introduction for you:

1. Host chassis: The chassis of the mixing host is similar to a cantilever shape, which contains the traction pin and parking bracket for the truck towing the mobile mixing station, and the concrete mixer, powder weighing, water weighing and liquid additive weighing are installed on the chassis device, and there are inspection and maintenance platforms around it, which is safe and convenient.

2. Mixing host: JS series forced twin-shaft mixer is used, which is suitable for mixing dry hard, plastic and fluid concrete light aggregate concrete and mortar.

3. Batching system: The batching system of the mobile batching plant is located at the rear end of the entire batching plant. The upper part is the aggregate batching bin, the lower part is the aggregate weighing and conveying system, and tires are installed under the bottom for easy movement.

4. Belt conveyor: The belt conveyor is a truss structure connecting the main chassis and the aggregate batching frame, and a belt conveyor frame is installed inside, so that the main frame, belt frame and batching frame of the mixing plant are connected together to form a conveyor belt for the entire mobile The main structure of the mixing station.

5. Control system: Imported components are used, and the performance is reliable; according to your own budget, you can choose automatic intelligent control, automatic control, manual control and other control methods for purchase; it has ratio storage, automatic compensation for drop, super scale, Under-scale alarm correction; data cloud storage, printing and other functions; the equipment is centralized control, which reduces labor costs, has the advantages of convenient control and improved production efficiency.

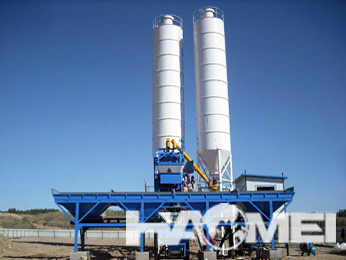

6. Cement silo: The cement silo can be equipped with a horizontal cement silo. This machine has the advantages of free foundation installation and convenient transition. The upper and lower parts are equipped with material level gauges and dust removal systems; Equipped with an air blowing arch breaking device; at the same time, the vibrator can be configured according to the demand. The discharge port is conveyed to the external feeding screw through the discharge screw. The default height of the outrigger is 1.5 meters, which can be customized according to customer needs. , Customers who are close to each other can choose to install a tire chassis; when transferring the site, there is no need to disassemble it into pieces, and it can be disassembled and transported as a whole.

The above is the configuration of yhzs mobile concrete batching plant, I hope it can help you.
