YHZS60 Mobile Concrete Batching Plant
-
Productivity: 60m3/h
-
Overall Power: About 85kw
-
Discharge Height: 3.8m
-
Power Source: 380/50 (V/ HZ)
Description
YHZS60 Mobile Concrete Batching Plant:

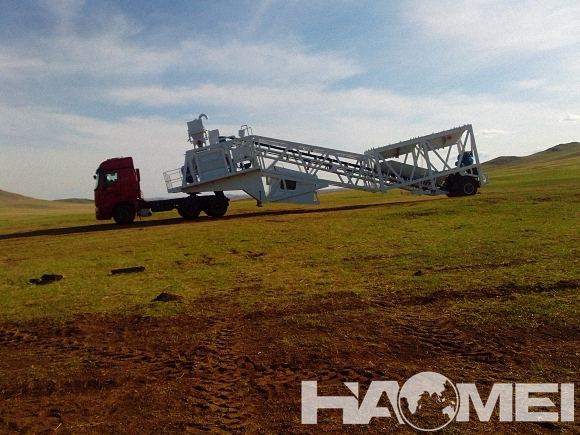

1.YHZS60 mobile concrete batching plant is easy to be removed from one site to another with the help of chassis with wheels.
2.With belt type conveyor system, the conveying speed will be greatly improved and improve the efficiency of yhzs60 mobile concrete batching plant
3.The Adoption of JS1000 twin shaft compulsory concrete mixer is not only to improve the productivity, also save the duration.
4.Main weighing system imported from abroad, high accuracy and efficiency is becoming the great advantages of YHZS60 mobile concrete batching plant.
Specification
The Parameters of YHZS60 Mobile Concrete Batching Plant:
YHZS60 Mobile Concrete Batching Plant | |
Specification | Value |
Productivity in theory(m3/h) | 60 |
Weighing scale Concrete(Kg) | 3000 |
Weighing scale Cement(Kg) | 720 |
Weighing scale Water(kw) | 360 |
Weighing scale Liquid addictive(kg) | 36 |
Overall power(KW) | About 85 |
Power source(V/ HZ) | 380/50 |
Discharging height(M) | 3.8 |
Overall weight(T) | 21 (Cement Silo not included) |
Trail speed(km/h) | ≤40 |
Specification(LxWxH) During work(M) | 17x3.6x8.2 |
During transportation(M) | 17.6x2.4x4.35 |

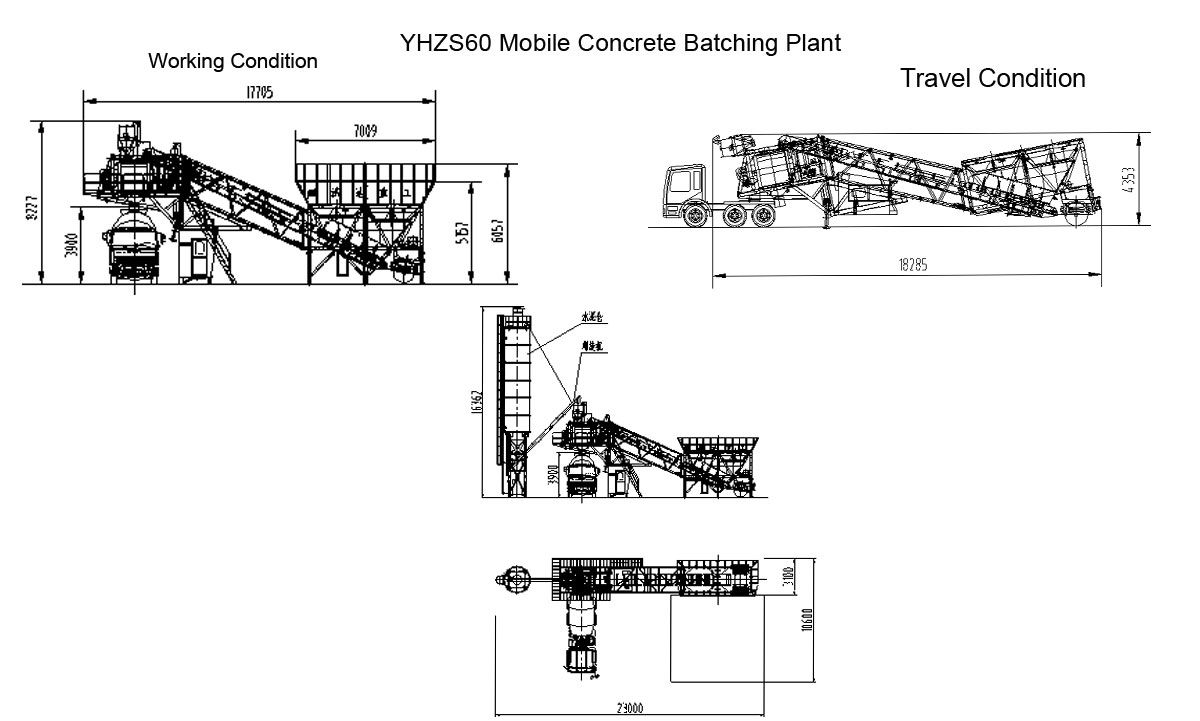

Drawing
