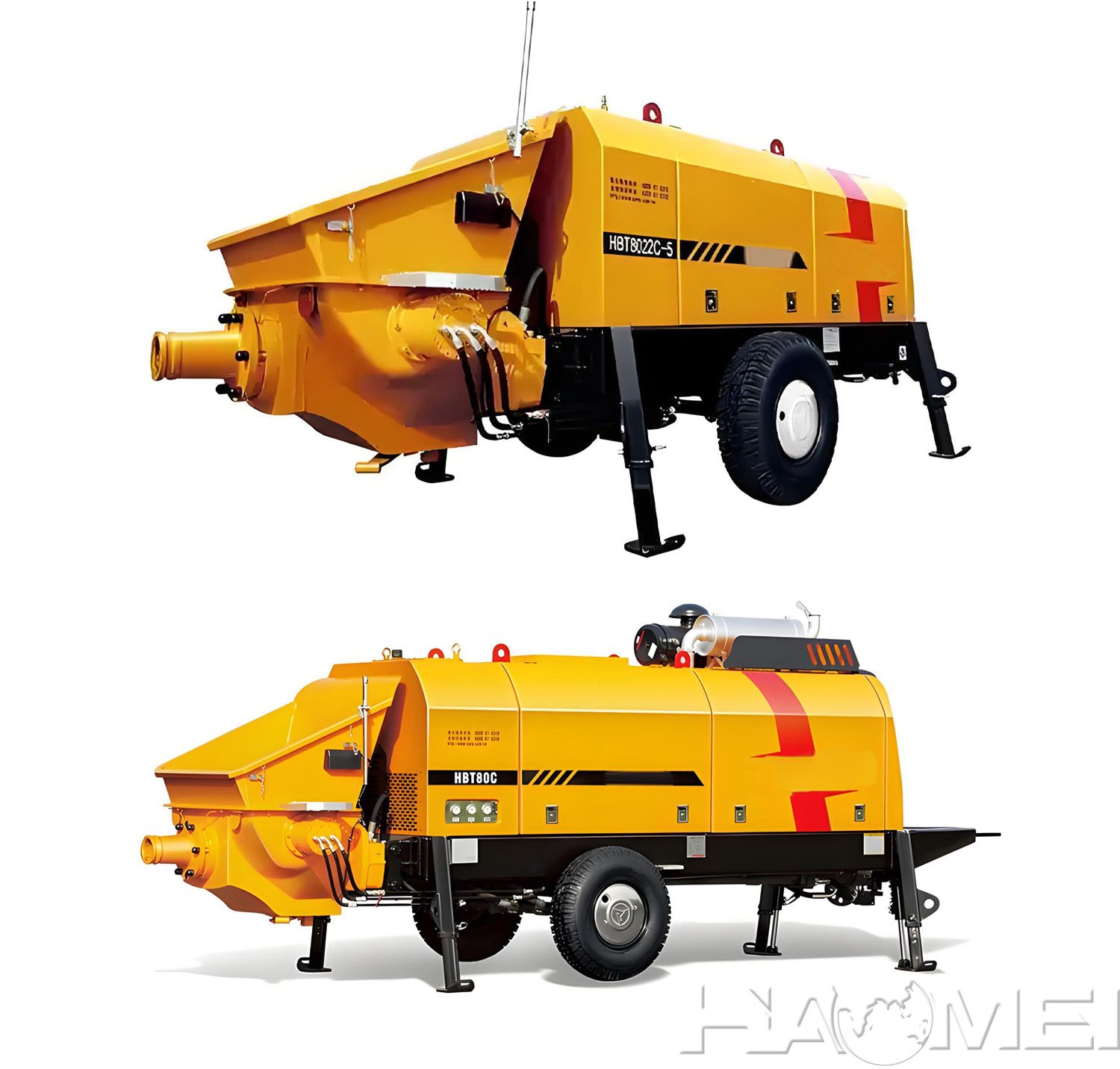

High-Efficiency Small Trailer Concrete Pump

Compared with large concrete pump trucks, small trailer concrete pumps stand out for their compact structure, flexible operation, convenient transport, and high cost-effectiveness. They are widely used in rural construction, municipal engineering, small-scale construction sites, tunnels, and foundation reinforcement projects.

Compact Yet Fully Functional: Structure of a Trailer Concrete Pump

1. Main Pumping System: Driven by hydraulics to achieve continuous concrete pumping. Key components include the main cylinder, concrete piston, and delivery cylinder.

2. Power System: Can be powered by diesel engines or electric motors, suitable for different construction environments.

3. Hydraulic System: Provides strong power for pumping and switching actions, using an open-loop hydraulic system for stable operation.

4. S-Valve Distribution System: Ensures uniform delivery of concrete from the hopper to the delivery pipe, maintaining continuous pumping and high efficiency.

5. Hopper and Mixing System: Keeps concrete uniform before pumping, preventing segregation and clogging.

6. Chassis & Mobility: Equipped with a towing hitch and wheels, allowing easy transport to the construction site.

Advantages of Small Trailer Concrete Pumps

• Low Initial Investment: Lower purchase and maintenance costs.

• Compact Footprint: Takes up minimal space and is easy to maneuver.

• Versatile Applications: Ideal for small and medium construction sites, rural areas, and tunnels.

• Easy Transportation: Can be towed by standard vehicles.

• Simple Operation: Easy to learn, reducing labor costs.

• Multi-Functionality: Capable of pumping concrete with various grades and slump levels.

Common Model Specifications of Small Trailer Concrete Pumps

Application Areas of Small Trailer Concrete Pumps

Thanks to their compact structure and excellent pumping performance, small trailer concrete pumps are widely used in:

• Rural Residential Construction: Concrete pouring for houses, courtyards, floors, and slabs.

• Municipal Engineering: Sidewalks, curbs, drainage channels, and water conservancy projects.

• Tunnels and Foundation Reinforcement: Concrete spraying, foundation grouting, and fine stone backfill.

• Industrial and Warehouse Construction: Floor concrete pouring and equipment foundation construction.

• High-Rise Secondary Structure: Works with secondary structure pumps for efficient construction.

Power Options for Trailer Concrete Pumps

Trailer concrete pumps can be powered by diesel or electric motors:

Electric Trailers: Ideal for city construction sites with stable power supply. They operate quietly, have zero emissions, and lower running costs.

Diesel Trailers: More reliable for remote areas or sites with unstable electricity. They are independent of external power sources and highly adaptable.

Maintenance: Extending Service Life

Regular maintenance is essential for long-term stable operation. After each use, clean all concrete-contact parts thoroughly to prevent residual concrete from hardening. Check wear parts such as the wear plate and cutting ring, and adjust or replace them as needed.

Scheduled maintenance extends equipment life. Regularly change hydraulic oil and filters, lubricate mixing components, and check all fasteners. Following the maintenance schedule in the equipment manual can prevent potential failures and ensure optimal performance.
