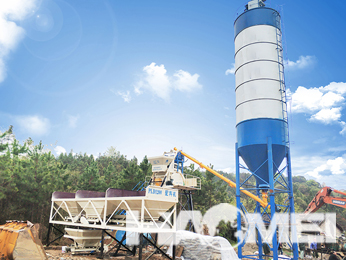

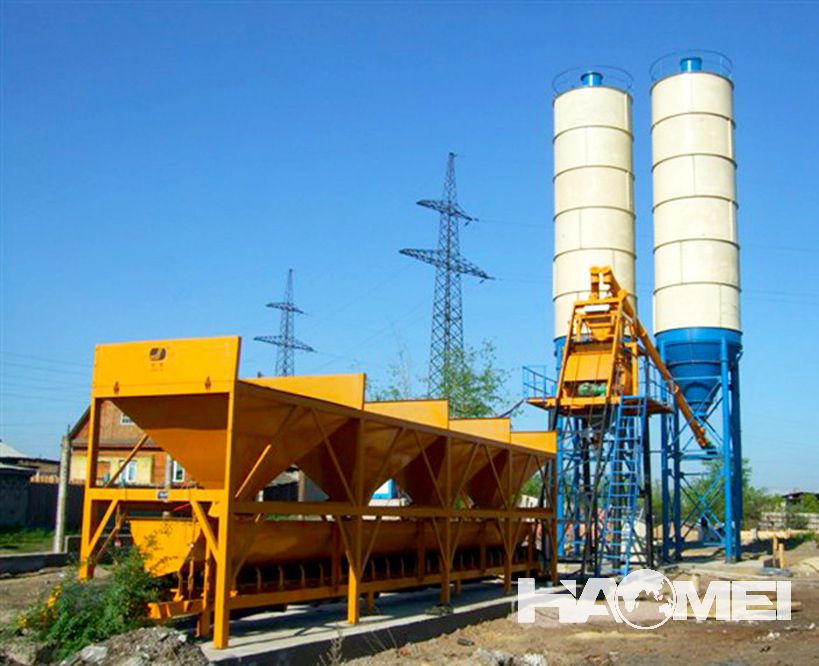

Complete set of equipment for small concrete mixing plant

The small concrete mixing plant is a mixing plant equipment with relatively simple configuration. In fact, if your project volume is not particularly large, the small simple concrete mixing plant is still worth considering. In fact, small and simple concrete mixing plants are widely favored by small and medium-sized projects because of their simple structure and low investment in equipment. So, what are the complete sets of equipment for small mixing plants?

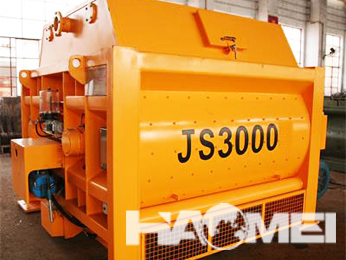

1. Stir the host. According to its stirring method, the stirring host can be divided into forced stirring and self-falling stirring. Compulsory mixer is the mainstream used in mixing plants at home and abroad. It can mix fluidity, semi-hardness and dryness of concrete. The self-falling mixer mainly mixes fluid concrete and is rarely used in mixing plants.

2. Weighing system. The material weighing system is a key component that affects the quality of concrete and the cost of concrete production. It is mainly divided into three parts: aggregate weighing, powder weighing and liquid weighing.

3. Conveyor system. The conveying system mainly includes aggregate conveying, powder conveying and liquid conveying. There are two ways of aggregate conveying in small mixing plants: hopper conveying and belt conveying. The advantages of hopper lifting are small footprint and simple structure. The advantages of belt conveying are large conveying distance, high efficiency and low failure rate. The commonly used powder conveying method is conveying by screw conveyor, which has the advantages of simple structure, low cost and reliable use. Liquid delivery mainly refers to water and liquid admixtures, which are delivered by water pumps respectively.

4. Storage system. The material storage methods available for concrete are basically the same. Aggregate is stacked in the open air; powder is stored in fully enclosed steel structure silos; admixtures are stored in steel structure containers.

5. Control system. The control system of the small batching plant is the central nervous system of the whole set of equipment. The control system has different functions and configurations according to different requirements of users and the size of the mixing plant. Generally, the control system of small mixing plants is simpler.

Haomei Machinery can provide small concrete batching plant models HZS25, HZS35, HZS50 and HZS60, the output is: 25m3/h, 35m3/h, 50m3/h, 60m3/h, users can choose according to the output of your concrete production suitable model.

The small and simple concrete mixing plant produced by Haomei Machinery has many models, complete configurations, reliable quality, and perfect after-sales service. It is worth choosing. If you are interested in purchasing, you can contact us directly by email.
