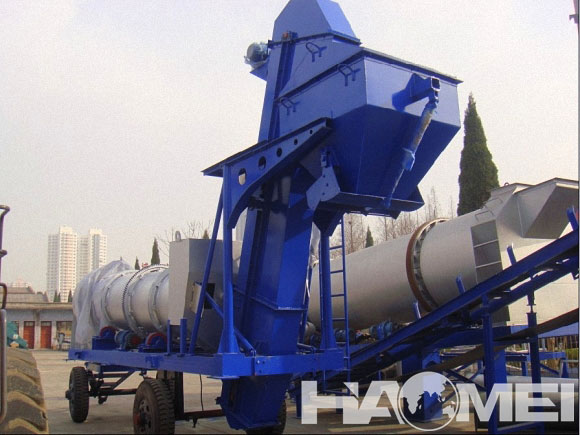

DHB40 Drum Asphalt Mixing plant

The Description of DHB40 Drum Asphalt Mixing plant:

1. Cold aggregate supply system(mobile) Components:Four aggregate belt feeders, a set of aggregate belt conveyor;

2.Middle filter Type: oblique flow automatically;

3.Titled belt feeding conveyor

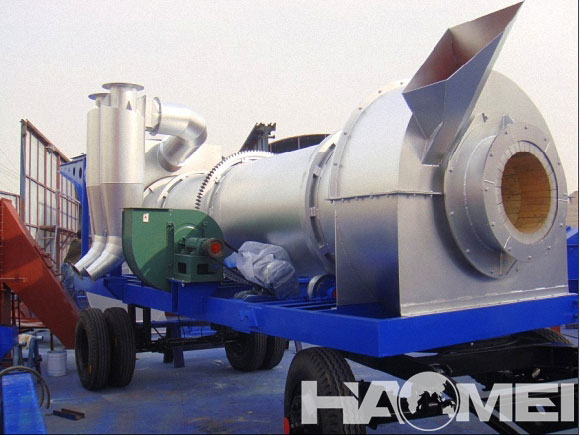

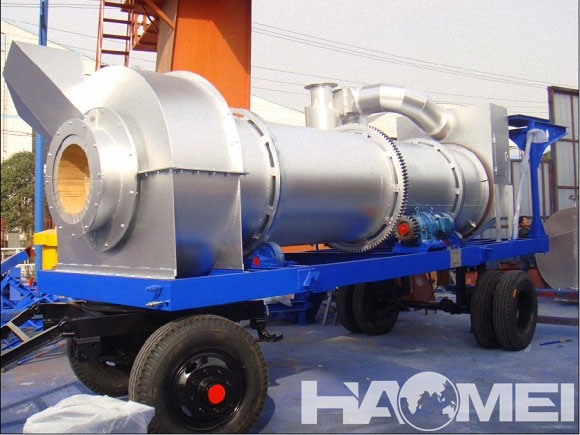

4.Drying drum assembly

Components:

(1). Dryer drum(mobile)

(2). Elevator

(3). Dust catcher

(4). Mixture storage silo

5.Oil burning system Components: A set of main oil burner(light oil), a suit of oil supply pipes; the client equip the asphalt tank by himself.

6.Asphalt supply system Components One asphalt tank, one set of asphalt pump and one set of asphalt pipelines;

7.Electric control system Components:

Control room, electric operation platform and cables from control room to the plant.

Parameters of DHB40 Drum Asphalt Mixing plant:

DHB40 Drum Asphalt Mixing plant
Specification	Value
Productivity (standard conditions)	40 t/h
oil consumption (standard conditions)	5.5-7kg/t
Operation mode	manual control
The figure dimension	30×16×6m
The total installed power	57.15kw
Aggregate Bin	3
