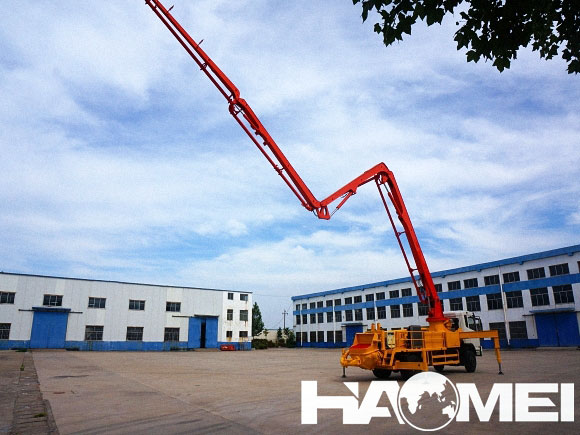

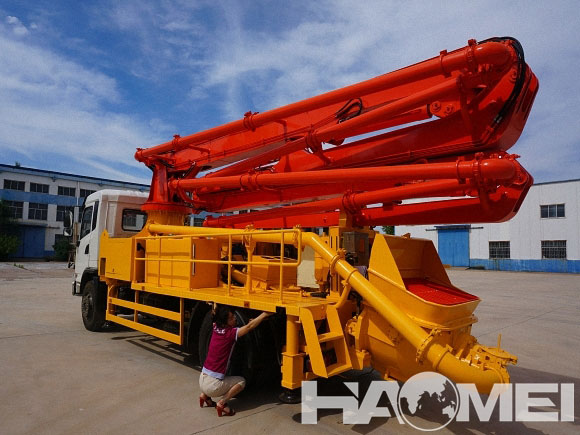

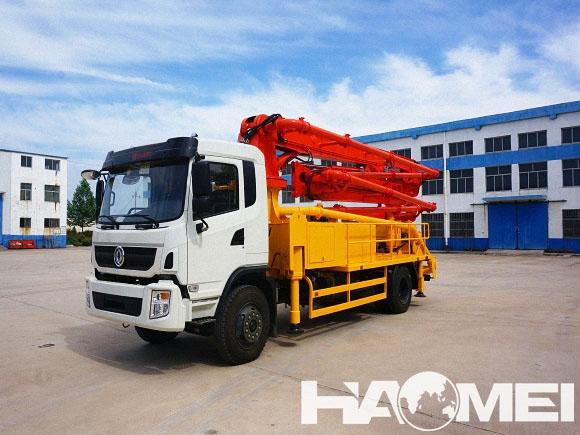

DT5401THB-4852 Concrete Pump Truck
-
Output in theory(m3/h): 125
-
Index of the pump carry capacity(Mpa.m3/h): 586
-
Theoretic pumping pressure(Mpa): 8.5
-
Bucket volume(L): 700
Description
The Features of HDT5401THB-48/52 Concrete Pump:
1.Original imported GERMANY HBC wireless remote-control device with light weight and handy carrying can enable aggregate carrying pipe to take position accurately simply by manual control.
2.Pumping capacity can be infinitely variably controlled. pump truck expanding speed can be infinitely controlled through quicken-slow device.
3.Boom slewing speed can be infinitely controlled .
4.it’s equipped with emergency brake device and diesel engine auto-control-speed device to lower oil-consumption.original imported GERMANY STEIBEL transfer case and REXROTH pump group;
5.Original imported slewing reducer and slewing motor;original imported GERMANY HAWE proportional multi-way valve;original imported GERMANY REXROTH valve and valve from ITALY oil-control companies;
6.Electric control box adopting totally imported parts while control modules like PLC are all products from GERMANY SIEMENS.
Specification
The Parameters of HDT5401THB-48/52 Concrete Pump:
HDT5401THB-48/52 Concrete Pump: | |
Specification | Value |
Output in theory(m3/h) | 125 |
Index of the pump carry capacity(Mpa.m3/h) | 586 |
Theoretic pumping pressure(Mpa) | 8.5 |
Bucket volume(L) | 700 |
Height of top surface of bucket(mm) | 140 |
Model of distribution valve(S) | valve |
Max. operation radius(m) | 43.7 / 47.8 |
Max. operation height(m) | 47.7 / 51.8 |
Max. operation depth(m) | 34.3 / 39.8 |
Open height of boom(mm) | 9065/9400 |
Distance between front landing legs(mm ) | 9780 /10295 |
Distance between rear landing legs(mm) | 9860 / 10650 |
Distance between front & rear landing legs(mm) | 9470/10310 |
Diameter of delivery pipe(mm) | 125 |
Length of hose pipe(m) | 3 |
Rotary range of boom | 365° |
Quantity of boom | 5 |
Rotary angle of each boom(°) | 91/180/180/180/270 90/180/180/180/270 |
Wire line control distance(m) | 33 |
Romote control distance(m) | 200 |
Max. speed(km/h) | 85/ 80 |
Min. turn radius(mm) | 12000 / 12500 |
8800(m) | 10 |
Approach angle(°) | 16 |
Departure angle(°) | 11 |
Chassis model | HOWO ZZ5437S4667C |
Wheel base between the first & the second axle(mm) | 1800 |
Wheel base between the second & the third axle(mm) | 4600 / 5000 |
Front tread(mm) | 1350 |
Rear tread(mm) | 2022 |
Max. engine output power(kw) | 275(2200r/min) |
Max. engine output torque(n.m) | 1500 /(1100~1600 r/min) |
Max, gradient ability(%) | 37 |
Fuel consumption(L/100km) | 40 |
(××)out dimension(L×W×H)mm | 13300×2500×4000 |
Total weight(kg) | 40000/42000 |
