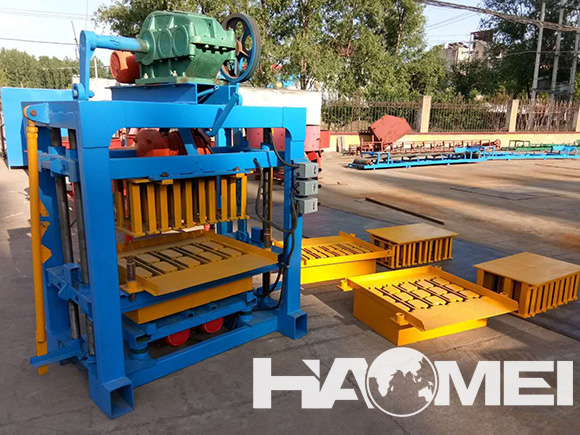

QT4-15 Fly Ash Brick Machine

Description

QT4-15 Automatic Fly Ash Brick Machine produces 8'(400x200x200mm) hollow block 4pcs/mould. The forming time is 15-20s. QT4-15 brick making machine is automatic brick production line. The production line should be with aggregate batching machine, JS500 concrete mixer, belt conveyor, block stacker.

1.Description of QT4-15 Fly Ash Brick Machine:

(1). Reliability. The machine frame is made of super- strength steel and by special welding technology, the imported elements are applied widely, so that the stability and reliability of the machine in long term running are insured.

(2). The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, fault diagnosis and parameters setting, ensure the best operation effect of the machine.

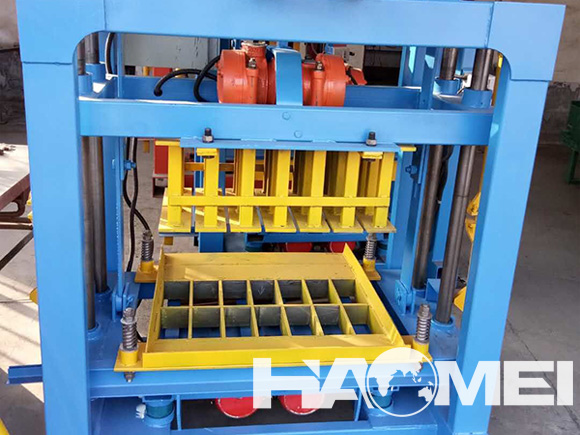

(3). Unique design. The special loading and supply unit, the multi-line whipping forks are fixed at inside of material feed box. The whipping forks works and feed the material to mold box forcedly during the material feed box moves to up of mold box, the feed will smoothly and equalization, than for the product, the intensity is insured and the weight is equal.

(4). Design with super strong vibrating activated force, The computer controls the pressure and flowing rate of hydraulic system; vertical synchrony-vibration; frequency conversion; brake, final the product reaches the high density and high strength within short time.

(5). Multi use; strong performance; the many kind of products with difference form and size can be made when use the difference mold, such as wall block, honeycomb type block, road block and slope block.

2. Features of Haomei Fly ash bricks machine:

Excellent production rate

Corrosion resistant finish

Sturdy construction

Easy operations

Longer functional life

Reliable performance
