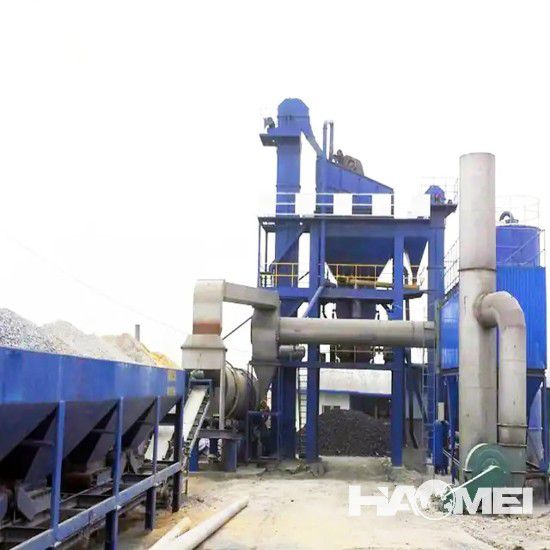

40 tons per hour small asphalt plant

Haomei Machinery specializes in selling 40 tons per hour small asphalt plants, model LB500 asphalt mixing plant, with a capacity of 40 tons per hour and high fuel efficiency. LB500 asphalt mixing station is a small mixing product developed by our company based on the construction characteristics of small equipment at home and abroad. The equipment adopts advanced 3D design and efficient production and processing technology to ensure the unity of technology and quality.

LB asphalt mixing station mainly consists of cold aggregate supply system, drying drum, combustion system, hot material elevator, vibrating screen, weighing system, main mixing building, dust removal system, supply system, asphalt supply system, electronic control system, and finished product storage Warehouse and other parts. LB500 is the smallest model among LB asphalt mixing plants.

LB500 asphalt mixing plant configuration parameters:

Rated output: 40 tons/hour

Cold aggregate container: 4 containers x6m3

Dry cylinder: 1.1mx4.2m

Bag dust collector: CNM156

Emission standard: 50 mg/standard cubic meter

Vibrating screen: 4 layers

Hot aggregate container: 12 tons

Stirring tank capacity: 500 kg

Mixing cycle: 45 seconds

Ore powder tank capacity: 30 tons

Asphalt tank volume: 30000L

Thermal oil furnace: 200,000 kcal/hour

Final product container volume: 50 tons

Control system: manual/semi-automatic/automatic

Features of LB asphalt mixing plant:

1. The original modular design of the mixing station makes transportation and installation quick and convenient.

2. Advanced drying drum design and advanced combustion heating technology improve efficiency.

3. Plate chain type hot aggregate and powder elevator can extend the service life of the elevator.

4. The high-heat aggregate bin can increase the volume of aggregates and expand production capacity.

5. Advanced pulse bag dust collector, the smoke and dust emission is less than 20mg/Nm3, which can meet the highest international environmental protection standards.
