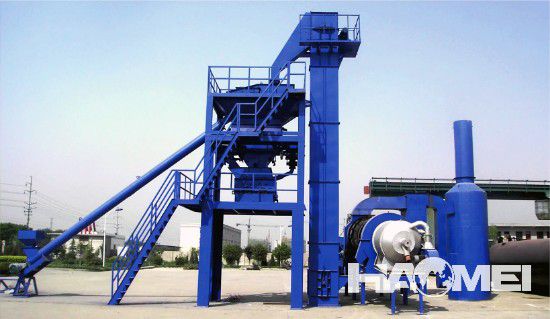

Small asphalt mixing plant LB500

The LB500 small asphalt mixing plant has a production capacity of 40 tons per hour, with high automation, high performance, reliability, good stability, and easy maintenance. Adopting modular design, it has the characteristics of fast installation, convenient transportation, short installation time and high production efficiency. It has made great contributions to highway construction, horizontal highway construction, urban road construction, port construction, airport construction and parking lot construction. The performance of hot mix asphalt equipment directly affects the quality of asphalt and roads.

Haomei Machinery can provide LB series asphalt mixing plants with a production capacity of 40-160t/h and models LB500-LB2000. The smallest asphalt mixing plant model is LB500. The cost of this small asphalt mixing plant is lower in the market and is popular among customers. welcome.

LB500 asphalt mixing plant has strict environmental standards. The entire process from the storage, transportation, heating, mixing and delivery of asphalt and aggregates to the factory has achieved environmentally friendly operation, effectively controlling the generation of harmful smoke, dust drift and high energy consumption during the production process.

The basic configuration of the LB500 small asphalt mixing plant consists of the following systems:

1. Stable cold aggregate supply system, with a total of 4 cold aggregate silos, 3 stone silos and 1 sand silo, which can meet any asphalt mixing requirements. Each bin is equipped with a belt feeder controlled by a VVVF motor. Speed adjustment range 0-18r/min.

2. The durable drying roller is made of 10mm steel plate and uses a 7.5kw drive motor and friction wheel drive to ensure stable rotation speed and maximum thermal efficiency;

3. Complete burner system with multiple fuel types to meet any construction needs;

4. Safe, reliable and efficient hot aggregate hoist, equipped with double-row high wear-resistant chain hoist, automatic tensioning device and anti-reverse device;

5. Effective dual dust removal system, compliant with environmental protection regulations;

6. The sturdy and easy-to-maintain two-layer, four-section fully enclosed vibrating screen has adjustable amplitude and is equipped with a motor reversal braking device to eliminate the shaking and irregular beating of the vibrating screen;

7. Precisely four hot aggregate silos, each silo is equipped with high and low liquid level indicators to judge the storage capacity.

8. Accurate imported weighing system;

9. Durable and stable mixing system consisting of pot body, stirring shaft, paddle arm, paddle head, wear-resistant straight line and flap. Both the straight line and the cutting head are made of high chromium iron.

10. Uniform and continuous powder supply system, equipped with powder bin and recovery bin.

11. Intelligent PLC control system, with automatic and manual control systems;

12. World famous brand pneumatic system, equipped with air compressor and induced draft fan.
