Components of concrete pump truck

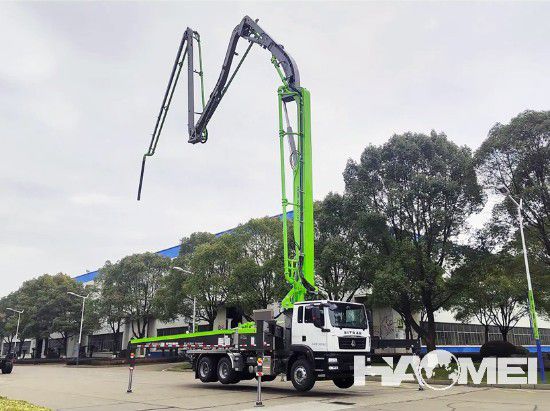

Concrete pump truck, also called boom pump truck, is a kind of equipment that integrates the pumping system for pumping concrete and the boom system for cloth distribution on the chassis of the car. The pumping system uses the power of the chassis engine to move the hopper The concrete inside is pressurized and sent into the pipeline, and the pipeline is attached to the boom, and the operator controls the movement of the boom to send the concrete pumped out by the pumping system directly to the pouring point. This boom pump is popular among users because it is easy to move and does not need manual piping during construction. So what are the structures of concrete pump trucks?

There are many types of concrete pump trucks, but their basic components are the same. Concrete pump trucks are mainly composed of six parts: chassis, boom system, turret, pumping system, hydraulic system and electrical system.

1. The chassis is composed of several parts such as the car chassis, PTO (transfer case) and paying beams;

2. The boom system is composed of multi-section booms, connecting rods, cylinders and connectors;

3. The turret is composed of a turntable, a slewing mechanism, a fixed turret (connecting frame) and a supporting structure;

4. The pumping system consists of six parts: pumping mechanism, hopper, S valve assembly, swinging mechanism, stirring mechanism, piping assembly and boom piping;

5. The hydraulic system is mainly divided into two parts: the pumping hydraulic system and the boom hydraulic system. The pumping hydraulic system includes the main pumping oil circuit system, the distribution valve oil circuit system, the stirring oil circuit system and the water pump oil circuit system. The boom hydraulic system includes three parts: the boom oil circuit system, the outrigger oil circuit system and the rotary oil circuit system. The hydraulic system is mainly composed of hydraulic pumps, valve groups, accumulators, hydraulic motors and other hydraulic components;

6. The electrical system is mainly composed of control cabinet, remote control and other electrical components.
