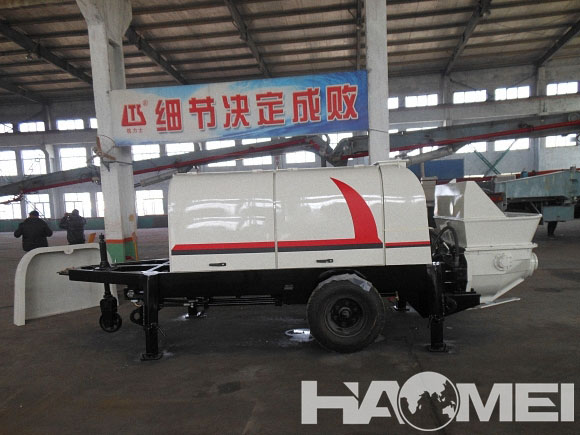

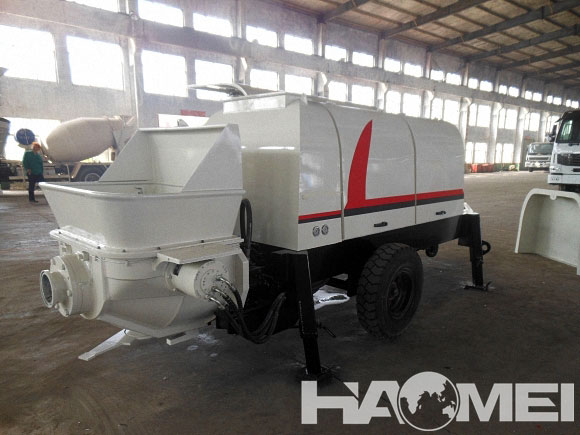

HBT60S1816-110 Trailer Concrete Pump
-
Theory Concrete Output(Low / High Pressure): 60m3
-
Concrete Pressure (Low / high pressure): 16/95Mpa
-
Hydraulic system pressure: 32Mpa
-
Rotation speed: 1480r/min
Description
1. The Description of HBT60S1816-110 Trailer Concrete Pump:
(1). The double pump and double loop hydraulic systems, higher reliability, and ease of fault diagnosis and troubleshooting;
(2). With safety overflow and overpressure shutoff device automatically to cut off the main pump to get multi-level protection;
(3). Swing the oil pump and accumulator constant pressure while oil, greatly reduce the heat of the hydraulic system, along with energy-saving features;
(4). Using suction and return oil filter technology to avoid foreign matter from entering the hydraulic circuit to further improve the reliability of the hydraulic system and component life;
(5). Pumping the oil using high and low pressure way valve block switch, convenient, reliable, and not oil;
(6). Hydraulic oil forced air cooling, ensure that the oil hydraulic system can be controlled at about 60 degrees.
Specification
The Parameters of HBT60S1816-110 Trailer Concrete Pump:
HBT60S1816-110 Trailer Concrete Pump | |
Specification | Value |
Theory Concrete Output (Low / High Pressure)(m3/h) | 60 |
"Concrete Pressure (Low / high pressure)"(Mpa) | 16/95 |
Hydraulic system pressure(Mpa) | 32 |
Rotation speed(r/min) | 1480 |
High / low pressure switch | Yes |
Distribution valve(S) | valve |
Pumping cylinder diameter/ Stroke(mm) | 195/1500 |
Main oil pump discharge(ml/r) | 110 |
Diesel engine(kw) | 110 |
Voltage/ Frequency(V/Hz) | 380/50 |
Hydraulic tank volume(L) | 400 |
Height of adding material(mm) | 1355 |
Hopper volume(m3) | 0.5 |
Total mass(kg) | 5800 |
Concrete slump(mm) | 120-230 |
Aclinic Delivery distance(m) | 1200 |
Theory vertical pumping height(m) | 250 |
Dimension: L*W*H(mm) | 6240*2110*2550 |
