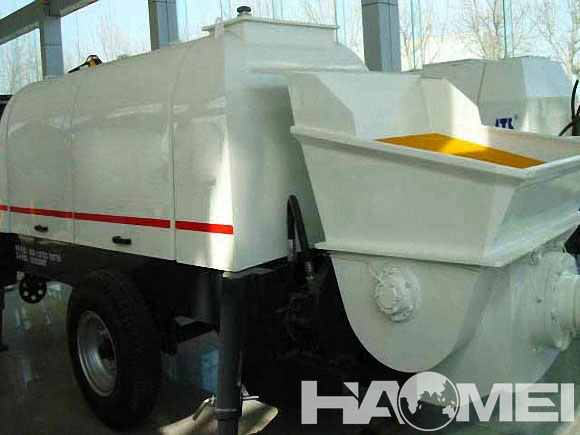

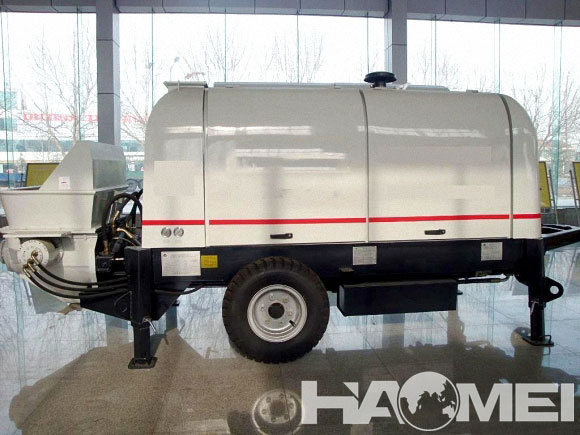

HBT60S1413-112R Trailer Concrete Pump
-
Theory Concrete Output(Low / High Pressure): 60m3
-
Concrete Pressure (Low / high pressure): 13/7.4Mpa
-
Hydraulic system pressure: 32Mpa
-
Rotation speed: 1480r/min
Description
1. The Description of HBT60S1413-112R Trailer Concrete Pump:
HaoMei HBT series concrete pumps are concrete pumping machines, including S-valve series of high-pressure concrete pumps, Z-gate-valve series of medium-pressure concrete pumps and D-butterfly-valve series of low-pressure concrete pumps. HBT series concrete pumps are mainly used to pump concrete. This concrete pumping is widely used for the construction works in civil construction, bridge construction, electric power and other energy source facilities and so on.
2. The Features of HBT60S1413-112R Trailer Concrete Pump:
(1). Power system of trailer concrete pump
(2). Electric control system of trailer concrete pump
(3). Hydraulic system of trailer concrete pump
(4). Pumping system of trailer concrete pump
(5). Lubrication system of trailer concrete pump
Specification
The Parameters of HBT60S1413-112R Trailer Concrete Pump:
| HBT60S1413-112R Trailer Concrete Pump | |
Specification | Value |
Theory Concrete Output (Low / High Pressure)(m3/h) | 60 |
"Concrete Pressure (Low / high pressure)"(Mpa) | 13/7.4 |
Hydraulic system pressure(Mpa) | 32 |
Rotation speed(r/min) | 148 |
High / low pressure switch | Yes |
Distribution valve(S) | valve |
Pumping cylinder diameter/ Stroke(mm) | 195/1500 |
Main oil pump discharge(ml/r) | 110 |
Diesel engine(kw) | 112 |
Voltage/ Frequency(V/Hz) | 380/50 |
Hydraulic tank volume(L) | 400 |
Height of adding material(mm) | 1355 |
Hopper volume(m3) | 0.8 |
Total mass(kg) | 5800 |
Concrete slump(mm) | 120-230 |
Aclinic Delivery distance(m) | 1200 |
Theory vertical pumping height(m) | 250 |
Dimension: L*W*H(mm) | 6240*2110*2550 |
