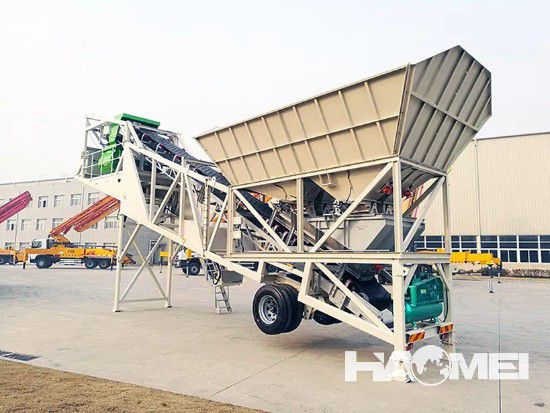

Forced mobile mixing station

The forced mobile concrete mixing plant is composed of JS forced twin-shaft mixer, PLD batching machine, conveyor, weighing system and other parts into one integrated mixing equipment. Its production standard is the same as that of the commercial concrete mixing plant, which can fully meet the production standard of high-grade concrete, and also has the characteristics of small footprint, high degree of integration, and flexible transition.

1. The discharge layer adopts simple cylindrical legs, the main station has a spacious space, reasonable layout, and convenient operation and maintenance. In particular, the main station adopts a hinge pin structure, the discharge layer has a wide and smooth lane, the appearance is simple and tidy, and the overall image of the mixing station is good.

2. The stirring layer platform adopts a steel frame structure, double variable cross-section I-shaped main beam, which is heavier, and its rigidity and shock absorption are better than ordinary structures. The stirring layer and the discharge layer form a rigid body and are integrated with the foundation. , effectively weaken the vibration from the mixing main engine; the support adopts rectangular outriggers, which not only has a simple structure, but also has a spacious space.

3. There are two powder weighing hoppers (cement, fly ash), one water weighing hopper, two liquid admixture weighing hoppers and one aggregate pre-storage hopper in the ingredient weighing layer. Weighing all adopts high-precision sensors, which are easy to install, easy to adjust, and reliable to use. The outlet of the powder weighing hopper adopts an automatically controlled pneumatic butterfly valve, and the inlet and outlet are all softly connected and fully closed. The admixture weighing hopper is set above the water metering hopper, and a stainless steel ball valve is used to discharge the material at the outlet.

Haomei Machinery is a concrete mixing plant manufacturer integrating R&D, production and sales. It can provide YHZS25, YHZS35, YHZS60, YHZS75 and other types of mobile concrete mixing plants. The models are complete, factory direct sales, and price concessions.
