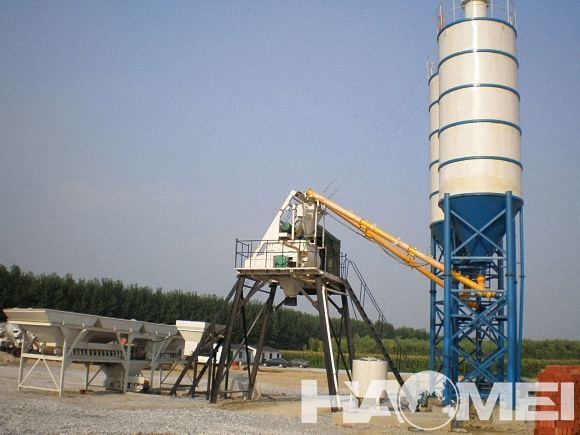

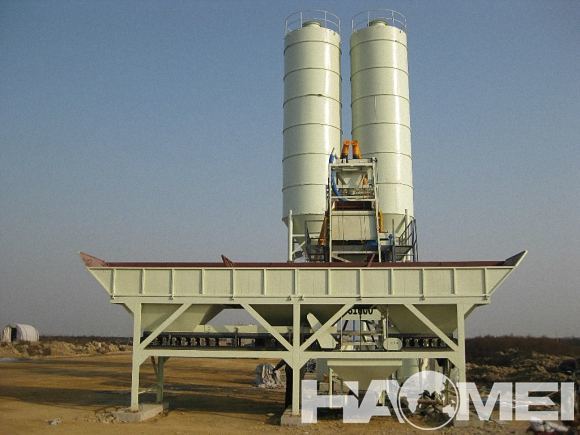

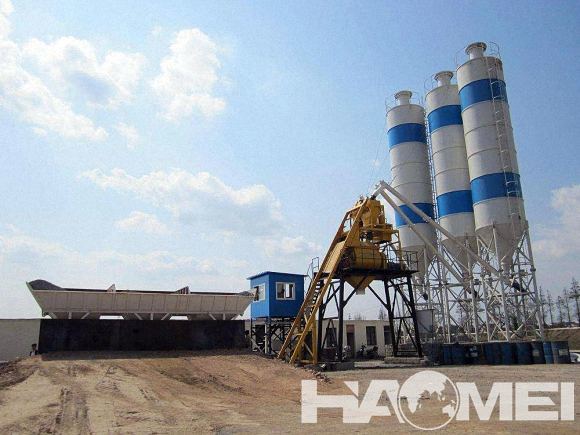

HZS25 Stationary Concrete Batching Plant
-
Productivity: 25m3/h
-
Capacity of Mixer: 0.5m3
-
Discharge Height: 3.8m
-
Aggregate Bin: 3
Description
1. The Description of HZS25 Stationary Concrete Batching Plant:
High-efficiency engineering concrete batching plant represents HZS25 type concrete batching plant is a small batching plant equipment, also known as 25 batching plant is a fully automatic concrete batching plant composed of feeding, batching, mixing, electrical control and steel structure components. Haomei Machinery HZS25 batching plant is produced and developed by combining the latest technology at home and abroad. It is suitable for the needs of customers and suitable for small-scale construction sites, prefabricated parts factories and commercial concrete companies.
2. Short Features of HZS25 Stationary Concrete Batching Plant:
(1). International popular modular compact structure
(2). Adapt and apply for the most advanced technologies
(3). The mixing system with excellent mixing performance
(4). Main electrical components from Germany SIEMENS
(5). Suitable for small-scale construction project
Specification
3. The Technical Parameters of HZS25 Concrete Batching Plant:
Model | HZS25 | |
Specification | Unit | Value |
Productivity | m3/h | 25 |
Capacity of Mixer | m3 | 0.5 |
Discharge Height | m | 3.8 |
Aggregate Bin | Quantity | 3 |
Capacity of Aggregate Bin | m3 | 4 |
Aggregate Bin Weighting Capacity | m3 | 0.8 |
Max. Weighing Value of aggregate | kg | 1500 |
Max. Weighing Value of cement | kg | 300 |
Max. Weighing Value of water | kg | 150 |
Max. Weighing Value of additive | kg | 40 |
Feeding Type | / | Skip Hopper |
Cement Silo | / | Optional |
Cement Screw Conveyor | / | Optional |
Control Mode | / | Auto/Semi control |

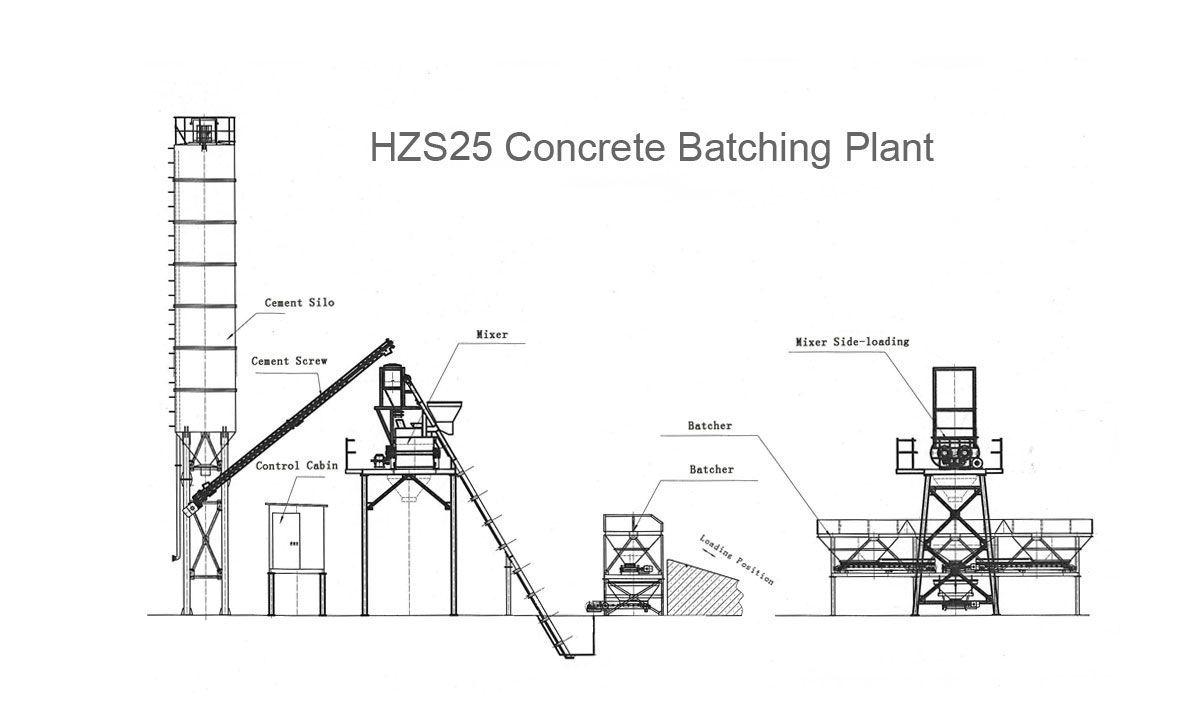

Drawing
