Mixing station HZS75 VS HZS90

HZS75 is similar to HZS90. The host machine, batching machine weighing machine, cement silo, etc. are the same. The difference is that the JS1500 host machine of station 75 uses a lifting hopper to load materials, which saves the inclined belt conveyor and waiting silo, and also reduces the site requirements. Since it takes time to lift materials up and down, its output is less than 90 stations, between 60 stations and 90 stations. The 75-type mixing station is mostly used for engineering concrete batching, while the 90-type mixing station is suitable for engineering projects that require high-strength concrete.

Mixing station HZS75 VS HZS90:

1.Yields vary:

The output of HZS75 is 75 cubic meters per hour, and that of HZS90 is 90 cubic meters per hour. Due to the different feeding methods, the output gap is caused. There are two types of batching machines for concrete mixing stations: hopper loading and belt conveyor loading. Compared with hopper loading, belt conveyor loading has higher efficiency, longer life, and higher safety factor.

2.Configuration is different:

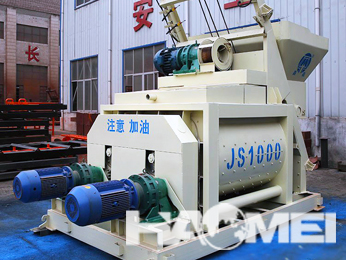

The configuration of HZS75 is JS1500 concrete mixer, PLD2400 three-silo batching machine, water metering system, additive metering system, cement metering system, fly ash metering system, screw conveyor, cement silo, air control system, fully automatic computer control system, control room.

HZS90 is configured with JS1500 mixer, PLD2400 four-bin batching machine, aggregate belt feeding system and waiting silo, water metering system, additive metering system, cement metering system, fly ash metering system, screw conveyor, cement silo, Air control system, fully automatic computer control system, control room.

3.Prices vary:

The price of the HZS90 environmentally friendly concrete mixing plant is around RMB 500,000 to RMB 600,000. The reason is that due to the high cost of the belt conveyor, the price of a mixer with a high configuration is also relatively high, and external sealing is also required, so the price is also high. The price of a HZS75 mixing station is around 300,000 to 400,000.

In general: the 90-type concrete mixing station has outstanding overall working capabilities, high work efficiency, and is environmentally friendly, while the 75-type concrete mixing station is cheap, easy to build, and each has its own characteristics.
