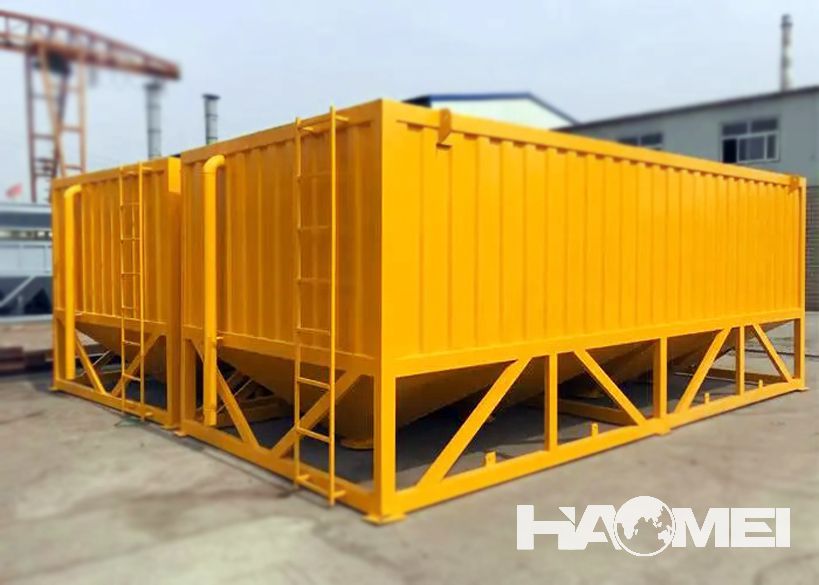

New horizontal cement silo

The new horizontal cement silo is also called horizontal cement tank. Most of them are square, supported by several legs at the bottom, the discharge cone is a square cone, the silo is welded by a frame composed of corrugated board and profiles, and the overall height is low.

Container cement silo is a closed tank for storing bulk materials, which consists of a silo, a feeding pipe, a ladder, a dust collector, a level meter, and a safety explosion-proof valve (the dust collector and the level meter can be freely selected by the customer). Horizontal cement tanks are suitable for storing cement, dry sand, chemical powder, fly ash and other materials. It is widely used in various mobile concrete batching plants, foundation-free concrete mixing plants and other temporary concrete mixing plants or stabilized soil mixing plants.

The horizontal cement tank is equipped with a level system that can display the location and amount of the material, and the hole-breaking device can remove the solidity caused by the long-term deposition of the material. Horizontal bulk cement silo and screw conveying pump can be used together to transport materials to various locations. The horizontal cement tank is easy to install, safe and reliable, and is an ideal bulk cement silo storage tank for various mixing stations.

Advantages of horizontal cement silo:

Flexible: can be moved at any time, and the installation process is simple.

High safety: low center of gravity, good stability, suitable for various environments.

Space saving: small footprint, no need for additional infrastructure, adapt to site space restrictions.

Application scenarios of horizontal cement silo:

1. Mobile mixing station: due to easy transportation and installation, it is used for mobile concrete mixing station, suitable for short-term construction projects.

2. Temporary storage: no foundation is required, it can be used for temporary storage of cement or powder.

3. Small construction projects: small footprint, easy operation, suitable for projects with limited space.

Haomei Machinery supplies horizontal cement silos with capacities of 30 tons, 50 tons, 60 tons, 80 tons, 100 tons, 150 tons, 200 tons, etc. Horizontal cement silo is an integrated cement silo. Its characteristic is that the product itself can be transported below 100 tons, while cement silos above 100 tons need to be made on site.
