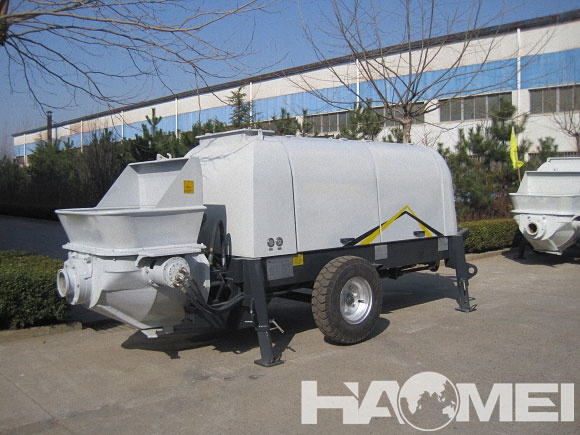

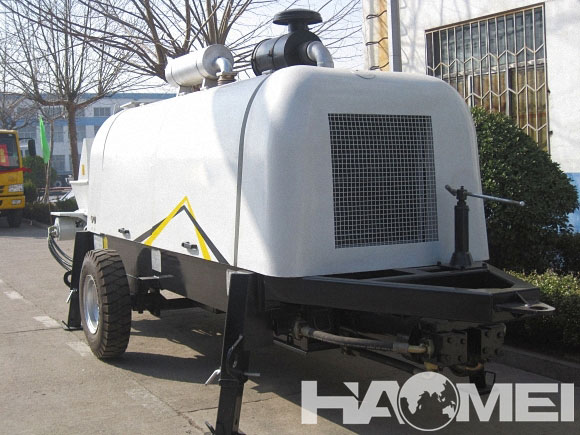

HBT80S1813-110 Trailer Concrete Pump
-
Theory Concrete Output(Low / High Pressure): 85/42m3
-
Concrete Pressure (Low / high pressure): 12.5/5.28Mpa
-
Hydraulic system pressure: 32Mpa
-
Rotation speed: 1480r/min
Description
The Description of HBT80S1813-110 Trailer Concrete Pump:

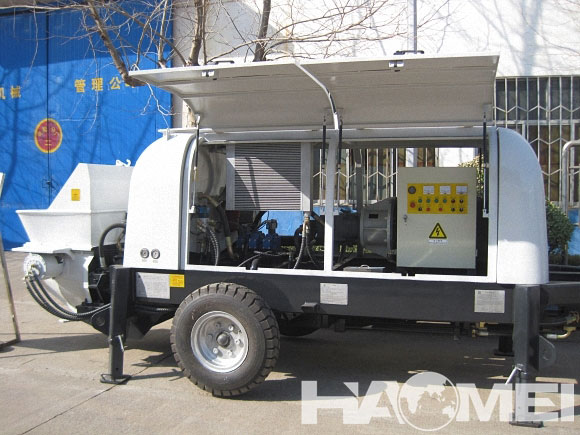

(1). Electrical system using the German Siemens programmable logic controller (PLC), for precise control of the machine and the machine has a working status and fault display;
(2). Closed electrical control box, ensure that the system can work in dust, humidity and other harsh environments;
(3). Wired remote control device can be connected;
(4). There is secure power outlet for night construction and maintenance;
(5). Most of the components using the world famous brand and high reliability.
Specification
The Parameters of HBT80S1813-110 Trailer Concrete Pump:
HBT80S1813-110 Trailer Concrete Pump | |
Specification | Value |
Theory Concrete Output (Low / High Pressure)(m3/h) | 85/42 |
"Concrete Pressure (Low / high pressure)"(Mpa) | 12.5/5.28 |
Hydraulic system pressure(Mpa) | 32 |
Rotation speed(r/min) | 1480 |
High / low pressure switch | Yes |
Distribution valve(S) | valve |
Pumping cylinder diameter/ Stroke(mm) | 200/1800 |
Main oil pump discharge(ml/r) | 224 |
Diesel engine(kw) | 110 |
Voltage/ Frequency(V/Hz) | 380/50 |
Hydraulic tank volume(L) | 500 |
Height of adding material(mm) | 1400 |
Hopper volume(m3) | 0.7 |
Total mass(kg) | 6200 |
Concrete slump(mm) | 120-200 |
Aclinic Delivery distance(m) | 1000 |
Theory vertical pumping height(m) | 250 |
Dimension: L*W*H(mm) | 6680*2210*2150 |
