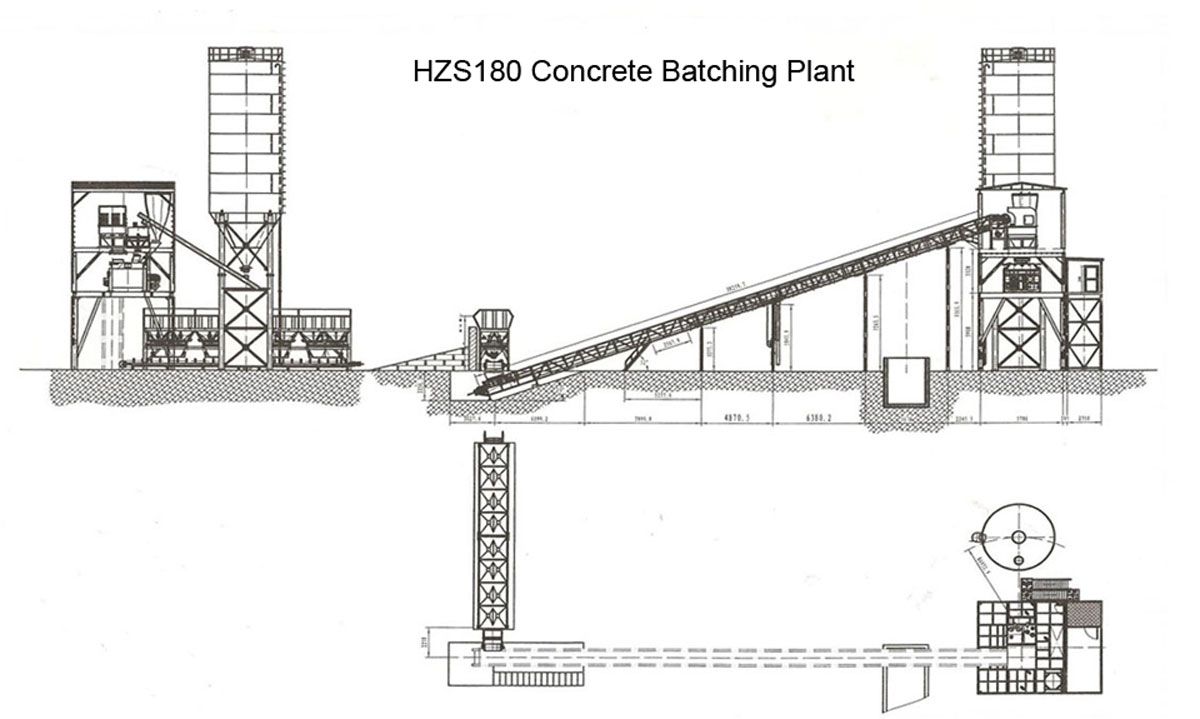

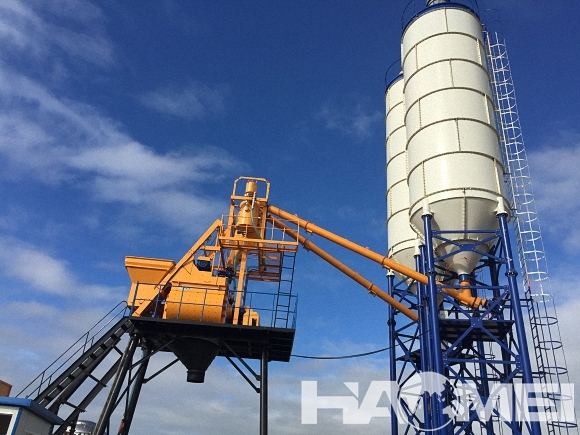

HZS180 Stationary Concrete Batching Plant

Description

1. Descriptions of HZS180 Concrete Batching Plant :

(1). HZS180 series concrete mixing plant productivity theory 180m3 / h, concrete mixer model JS4000, mixing console power of 110KW, total power equipment package for 200KW, warehouse cell including 4 grid batching machines, batching capability 240m3, cement weighing range and accuracy (0 ~ 1500) 1% kg, additive weighing range and accuracy (0 ~ 50) 1% kg, discharge height of 4 meters.

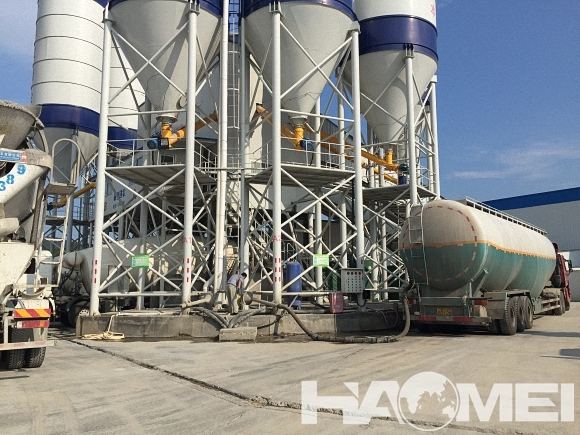

(2). HZS180 concrete mixing station consists of two rows of cement silo and a series of screw conveyor, controlled by a microcomputer control room side jobs throughout the concrete mixing station.

(3). Simultaneously to two concrete trucks transporting materials agitation. Also using the latest design ideas of electronic weighing, computer control, digital display control technology, electronic volume with buffer device and automatic compensation function, high accuracy.

(4). The aggregate system uses a large belt width herringbone material, which can be set according to the needs of the pedestrian walkway security.

2. The Features of HZS180 Concrete Batching Plant:

(1). Modular design structure, which is easy to install and disassemble

(2). With JS4000 or SICOMA Concrete Mixer, high efficiency productivity and mixing performance

(3). PLD4800 aggregate batcher and individually weigh system will improve the efficiency of weighing system.

(4). Accuracy weighing system, water, ash, aggregate, cement will be weighing accurately, which improves the quality of concrete.
