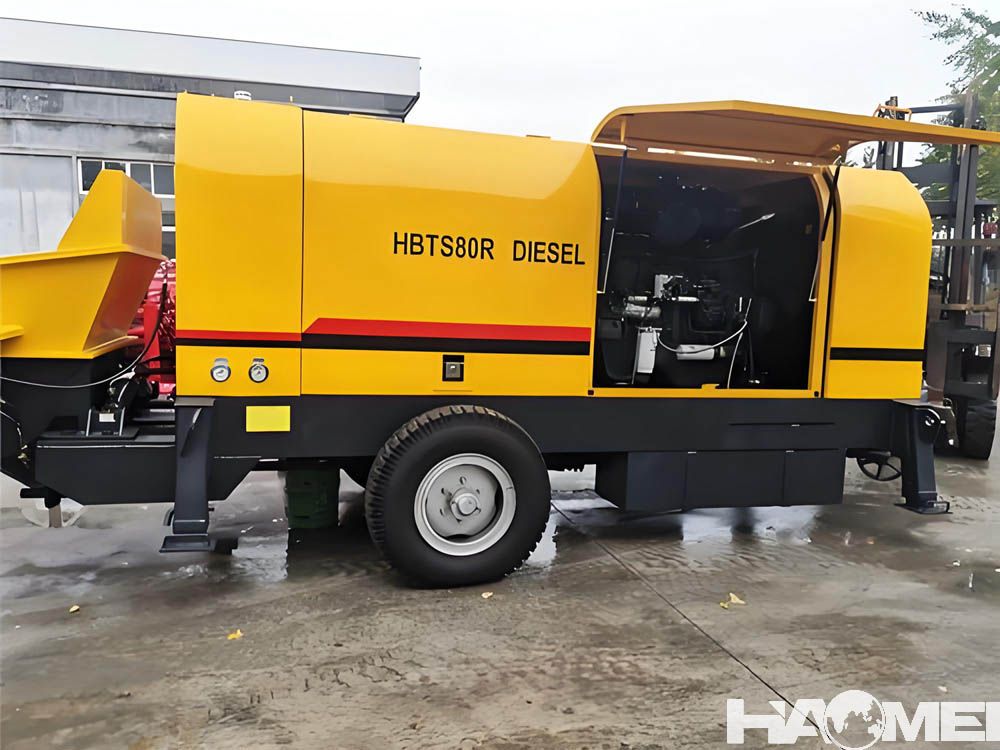

China 60m³/H Diesel Trailer Concrete Pump
HAOMEI Machinery's 60m³/H Diesel Trailer Concrete Pump combines high-efficiency pumping capability with convenient mobility, making it a professional solution for a wide range of construction environments. Powered by a diesel engine, unlike electric trailer concrete pumps, it does not rely on grid electricity, making it suitable for remote areas or locations without power supply, providing construction teams with a truly all-terrain concrete delivery solution.
With a pumping capacity of up to 60 cubic meters per hour, this pump can meet the concrete delivery requirements of medium to large-scale construction projects. Its trailer-mounted design allows quick relocation between sites, significantly improving equipment utilization.
Technical Features of the Trailer Concrete Pump
1. Advanced Hydraulic System
The pump is equipped with an open hydraulic system and constant power control technology to ensure the main oil pump operates stably under varying loads. A highly efficient cooling system keeps the hydraulic oil temperature within optimal ranges during long continuous operation, fully meeting the demands of large-scale concrete pouring.
2. Intelligent Control System
The integrated PLC programmable controller monitors the pump in real-time and provides fault self-diagnosis. The user-friendly interface allows operators to quickly learn and operate the equipment with minimal training.
3. Automatic Lubrication System
An automatic centralized lubrication system delivers precise, timed lubrication to the pistons, S valve, and other friction points, significantly extending the service life of wear-prone components.
4. Optimized Concrete Delivery System
Innovative S-valve design and carefully calculated hopper structure ensure smooth concrete flow and effectively reduce pipe blockages. Wear parts such as the wear plate, cutting ring, and S valve are made from high-strength alloy materials for extended durability.
5. Efficient Cooling System
Equipped with large-capacity air or water cooling devices, the system maintains optimal hydraulic temperature even under extreme heat, protecting hydraulic components during prolonged operation.
HBT Series Trailer Concrete Pump Specifications
| Rated Capacity | 60 m³/h |
| Max Pumping Pressure | 8-12 MPa (depending on model) |
| Delivery Cylinder Diameter × Stroke | 200 mm × 1600 mm |
| Max Delivery Distance | Horizontal: 300-600 m / Vertical: 80-160 m |
| Delivery Pipe | 100 m |
| Concrete Slump Requirement | ≥ 12 cm (adjustable by pump type) |
| Power System | Diesel Engine (75–110 kW) |
| Max Aggregate Size | ≤ 40 mm |
| Gross Weight | 4800–6200 kg |
| Dimensions (L×W×H) | 5000×1800×2100 mm |
Why Choose a Trailer Concrete Pump?
1. High-Efficiency Pumping
With a rated capacity of 60 m³/h, the pump ensures stable, continuous delivery, improving pouring efficiency and shortening construction time.
2. Independent Diesel Power
Diesel operation eliminates dependence on grid electricity, ensuring reliable operation even in remote areas or sites with limited power availability.
3. Flexible Mobility
The trailer-mounted design is compact and easily towable by pickup or construction vehicles, allowing rapid relocation between construction sites and urban areas.
4. Intelligent Operation
Equipped with a digital display showing oil temperature, pressure, and other key parameters, operators can easily monitor equipment status, reducing operational errors.
5. Long Service Life
The pumping system uses high-chrome alloy S valves, wear plates, and cutting rings, ensuring durability even when pumping concrete with high sand and gravel content, significantly reducing maintenance costs.
6. Lower Construction Costs
Optimized diesel engine and oil pump control reduce fuel consumption by 10-15% compared to standard diesel pumps, while maintaining high pumping capacity.
7. Wide Application Compatibility
Suitable for ready-mix concrete, rural construction, municipal roads, hydraulic projects, and bridge construction, making it a versatile choice for contractors.
8. Easy Maintenance
Maintenance points are logically arranged, allowing routine servicing on-site. Most wear parts are standard or interchangeable, simplifying procurement and reducing costs.

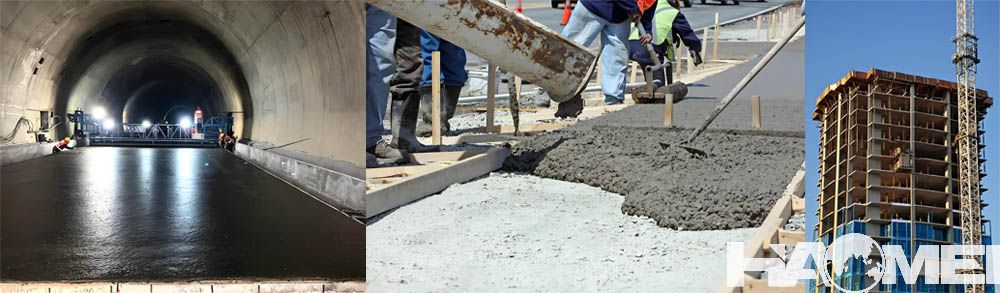

Application Areas
Urban road and bridge construction
Industrial and residential building concrete delivery
Municipal infrastructure projects
High-speed railway and highway construction
Rural self-built houses
Hydraulic engineering
Foundation reinforcement and tunnel support
HAOMEI Machinery's Trailer Concrete Pump delivers powerful performance, high output, excellent pumping efficiency, and exceptional adaptability across construction environments. Trusted by major construction companies, our products are exported to over 40 countries, offering superior quality, competitive pricing, and reliable after-sales support. If you are looking for a high-performance trailer concrete pump, contact us today.
