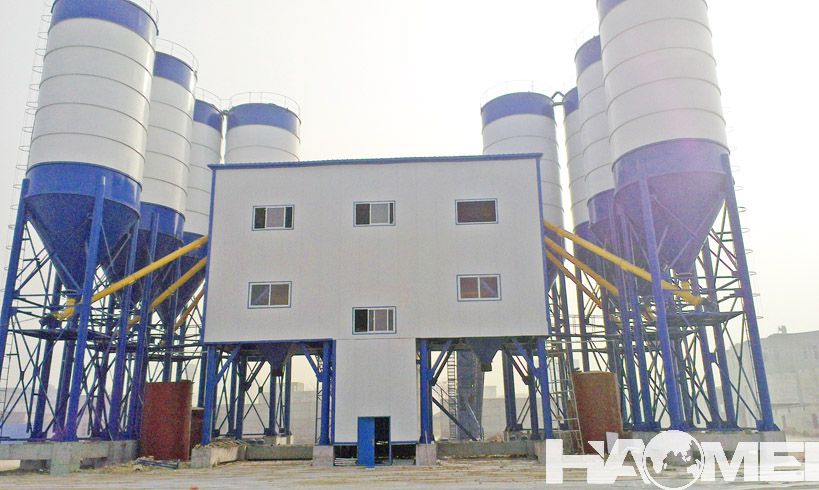

Double HZS180 concrete batching plant
Double HZS180 concrete mixing station is a large-scale concrete production equipment, usually used for concrete production in large-scale engineering projects. HZS180 represents the production capacity of the mixing station, which can produce 180 cubic meters of concrete per hour. Double HZS180 means that it is equipped with two such mixing units, which further improves the overall production capacity and enables it to produce up to 360 cubic meters of concrete per hour.
Equipment composition:
The double-line hzs180 concrete mixing station production line is a fully automatic concrete mixing equipment composed of PLD concrete batching machine, JS series forced concrete mixer, electrical control system, powder system, etc. It has a high-precision microcomputer control system, and is equipped with a separate manual control, with ratio storage, automatic compensation for drop, and a printing system, which can automatically complete the scheduled tank production.
Advantages of double-line concrete batching plant:
1. High production capacity: The double HZS180 design improves concrete production efficiency and is suitable for large infrastructure projects (such as bridges, airports, and highways).
2. Automated control system: Equipped with advanced systems to accurately control the concrete mix ratio and production process to ensure stable quality.
3. Modular design: Easy to install, disassemble and transport.
4. Environmentally friendly design: Equipped with dust and noise control systems, in line with environmental protection standards.
5. Double-line production: Two independent mixing systems can work simultaneously or independently, providing flexible production solutions.
Scope of application:
The double-line hzs180 concrete batching plant is suitable for concrete in industrial, civil construction, highways, railways, bridges, electricity, water conservancy, ports, airports and other projects. It can be used as a mixing equipment for commercial concrete production, and can be composed of various forms and specifications of combined concrete mixing stations according to the needs of different users.
The main technical parameters of the double HZS180 concrete mixing station include:
| Theoretical productivity | 360m³/h (Double) |
| Mixing host model | JS3000×2 |
| Mixing host power | 110KW×2 |
| Total power of the whole equipment | ≈400KW |
| Batching machine compartment number | 4 |
| Batching capacity | 480m³ (Double) |
| Cement weighing range and accuracy | (0~1500)±1%kg |
| Weighing range and accuracy of admixture | (0~50)±1%kg |
| Discharge height | 4 m |
