Self Loading Concrete Mixer 3.5 Cubic
-
Production Capacity: 3.5 Cubic Meter/Drum
-
Discharge Capacity: 3500L
-
Rated Power: 85kw
-
Fuel tank: 75 L
Description

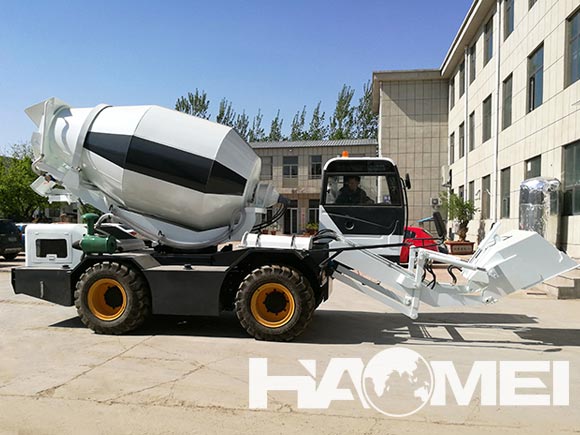

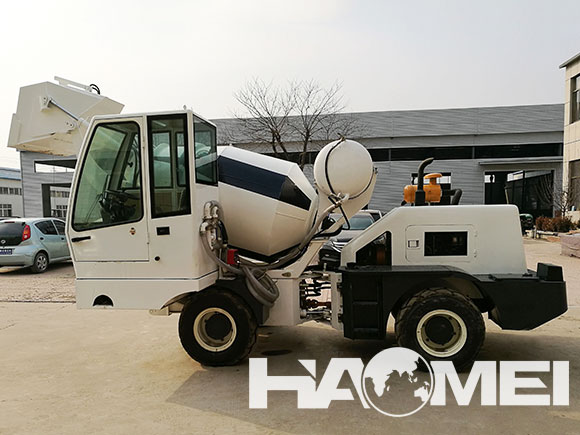

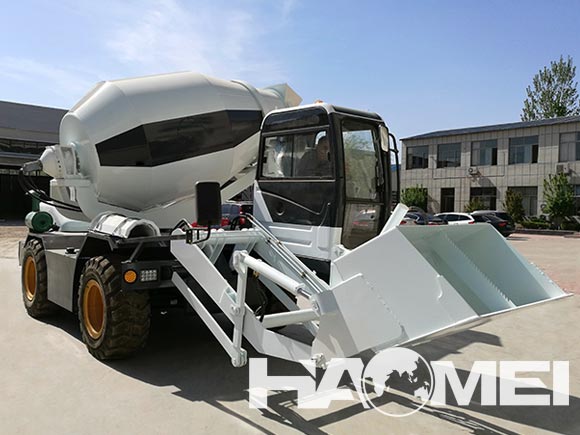

1.Description of Self Loading Concrete Mixer 3.5 Cubic:
Self loading concrete mixer for sale is a new type of concrete mixer machine. It can automatically feed, move, mix and discharge the concrete. Compared with traditional concrete mixer machine, self loading concrete mixer greatly improves the working efficiency and reduces the working period. The whole working process of self loading concrete mixers just takes ten to fifteen minutes from feeding to discharging. Haomei self loading concrete mixer for sale is used for the construction of irrigation, roads, buildings, factories, urban infrastructure, power, railways and so on.
2.Advantages of Self Loading Concrete Mixer 3.5 Cubic:
(1). The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
(2). The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
(3). It has independent water supply system, which can ensure the high quality of concrete.
(4). It just need one operator to drive, load, and mix raw material while moving it.
(5).Full in-cab machine control ensure easy and comfortable operation
(6).Easy maintenance save labors for construction projects.
(7). No dead angle assures safe and easy operation
Specification
The Parameters of Self Loading Concrete Mixer 3.5 Cubic:
Self Loading Concrete Mixer 3.5 Cubic | |
Specification | Value |
Equipment Model | 3.5 cubic self loading concrete mixer |
Drum geometrical capacity | 4740L |
Discharge Capacity | 3500L |
Engine Model | Yuchai 4105 Turbo-Charged |
Rated Power | 85kw |
Gear box model | ZL-280 Power Shift Gearbox |
Gear | 2 Forward 2 Back,Front Wheels Steering |
Fuel tank | 75 L |
Total hydraulic system capacity | 75 Liters |
Oil tank | 16 liters |
Reducer | HJ80-43 |
Transmission | Hydraulic |
4 wheel driver,2 wheel steering | |
Hydraulic Pump | CBGQ 2040/2080 |
Hydraulic Motor | BM5-160 |
Hydraulic Motor | 620 L |
Water supply | Time relay |

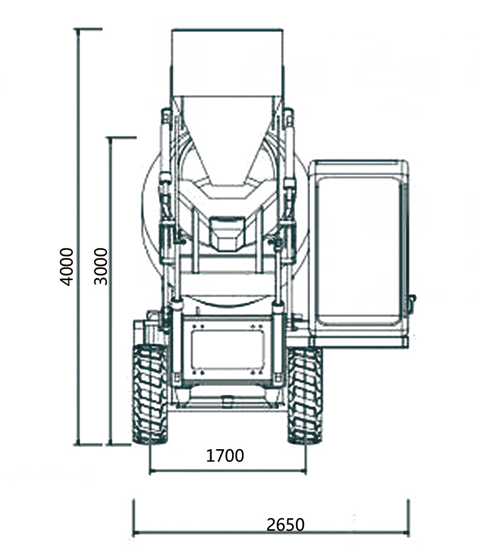

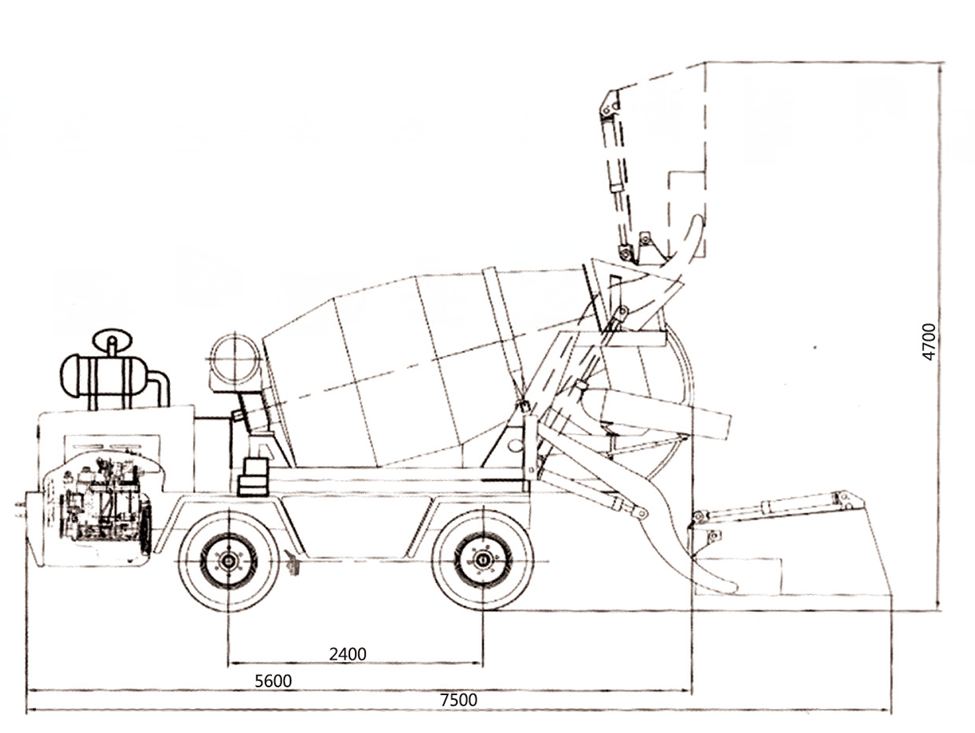

Overall dimensions(L*W*H) | 7830*2680*4170 |
Wheelbase (mm) | 2900 |
Curb Weight (kg) | 7500 |
Drive Form | Torque converter |
Drum rotary | 270º |
Drum Mixing Speed (r/min) | 13-20 |
Max.Speed (km/h) | 30 |
Maximum grade | 30º |
Maximum turning radius (mm) | 5300 |
Minimum ground clearance (mm) | 380 |
