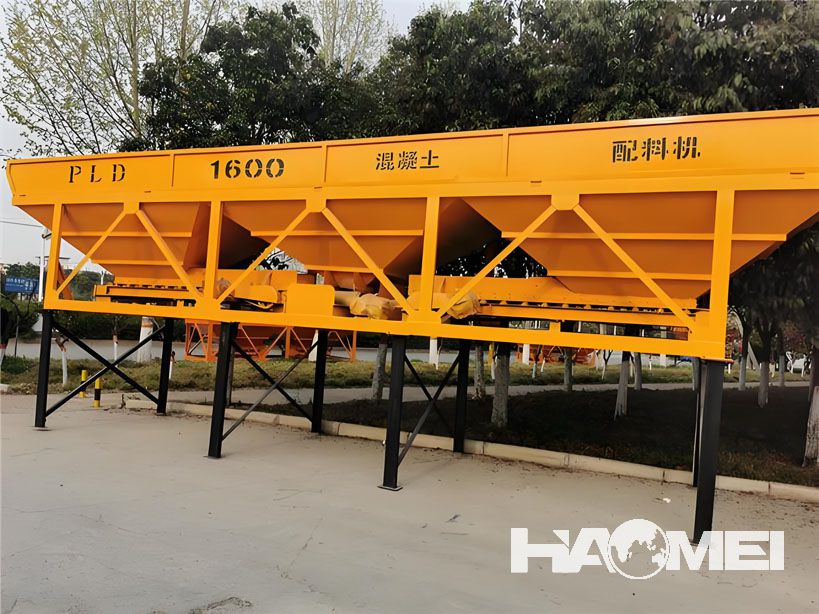

One-line concrete batching machine

One-line concrete batching machine is a concrete batching equipment with batching hoppers arranged in a "one" shape. It is mainly used to quantitatively proportion the raw materials of concrete (such as sand, stone, cement, etc.) to ensure the accuracy of concrete proportioning, so as to meet the quality requirements of the project. It usually consists of a storage hopper, a feeding device, a weighing hopper, a hanging device, a weighing system sensor, a batching controller, and an electrical control system.

One-line concrete batching machines are widely used in small and medium-sized construction projects, prefabricated component plants, and concrete mixing plants. Models include: PLD800/1200/1600/2400/3200, etc.

Working principle of PLD series concrete batching machine:

Feeding: Various raw materials are fed into each storage hopper of the batching machine by a loader or manually.

Input formula: According to production requirements, enter the formula ratio of various raw materials in the batching controller.

Automatic batching: After pressing the batching button, the batching machine starts to automatically batch according to the preset formula. First, the belt conveyor under a storage hopper starts working and transports the material to the weighing hopper. When the weight of the material in the weighing hopper reaches the set value, the belt conveyor stops automatically, and then the next belt conveyor starts working, and so on, until all the materials are ready.

Discharging: After all the materials are ready, the machine is in a waiting state for discharging. At this time, press the discharging button, and the discharging belt conveyor starts working to unload the prepared concrete dry material into the mixer hopper. After the discharging is completed, the discharging belt conveyor stops automatically and automatically starts the next batching cycle.

Advantages of the one-line concrete batching machine:

1. Compact structure: The design of the one-line concrete batching machine makes it compact, small in footprint, and easy to install and move.

2. Accurate batching: The use of advanced batching control technology and precise weighing system ensures the accuracy of each batching.

3. High degree of automation: The batching process is fully automated, reducing manual operations and improving production efficiency.

4. Strong adaptability: The formula ratio can be adjusted according to different production needs, and it is suitable for concrete mixing plants of various sizes.

Key factors for selecting PLD series concrete batching machine models:

1. Production capacity: Select small, medium or large batching machines according to the scale and duration of the project. Small is suitable for small projects, medium or large is suitable for large projects.

2. Mixing system type: There are mainly forced type and free fall type. Forced type is suitable for high-strength concrete, and free fall type is suitable for ordinary concrete.

3. Control system: The advancement and stability of the system should be considered, and a control system with high precision and efficiency should be selected to ensure the quality of concrete.

4. Specific project requirements: Considering the mobility of the PLD series concrete batching machine and the concrete quality requirements, select models that are easy to disassemble and transport or models with high-precision batching and high-quality mixing systems.
