Self Loading Concrete Mixer 1.8 Cubic
-
Production Capacity: 1.8 cubic self loading concrete mixer
-
Discharge Capacity: 1800L
-
Rated Power: 78kw
-
Fuel tank: 63L
Description
1.Description of Self Loading Concrete Mixer 1.8 Cubic:
During project, mini self loading concrete mixer truck loads materials by self, doesn't need any other auxiliary equipment, and it has characteristics of small volume, four wheels-driving and steering. What's more, it can discharge concrete at 270 degrees, which is much more convenient in all kinds of concrete production construction site, especially particularly small and narrow construction sites, it is very cost-saving for the majority of users.
2.Advantages of Self Loading Concrete Mixer 1.8 Cubic:
(1).Independent water supply system, ensure the high quality of concrete.
(2).Twin joystick&limited toggles are in tune with a smart cockpit design.
(3).Zones of reach and comfort comply with ergonomic norms.
(4).Command integration confers better control and maneuverability.
(5). Achieved full in-cab machine control. (Easy and comfortable operation)
Our service concept is to make customers have a satisfactory selection, secure purchase, and happy utilization. And one-stop service means once you place an order, we will eliminate your trouble back at home and we will do everything for you, for our mission is to make it easier to buy and sell industrial products and we put the customers first.
Specification
The Parameters of Self Loading Concrete Mixer 1.8 Cubic:
Self Loading Concrete Mixer 1.8 Cubic | |
Specification | Value |
Equipment Model | 1.8 cubic self loading concrete mixer |
Drum geometrical capacity | 2680L |
Discharge Capacity | 1800L |
Engine Model | Yuchai 4102 Turbo-Charged |
Rated Power | 78kw |
Gear box model | ZL-265 |
Gear | 4 forward 4 back |
Fuel tank | 63L |
Total hydraulic system capacity | 63 liters |
Oil tank | 16 liters |
Reducer | HJ80-43 |
Hydraulic Pump | FC50/40 |
Hydraulic Pump | BM5-160 |
Water tank | 400L |
Water supply | Time relay |

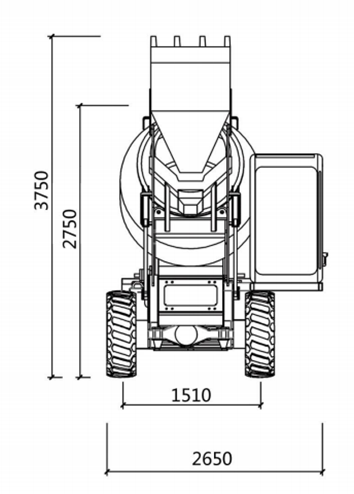

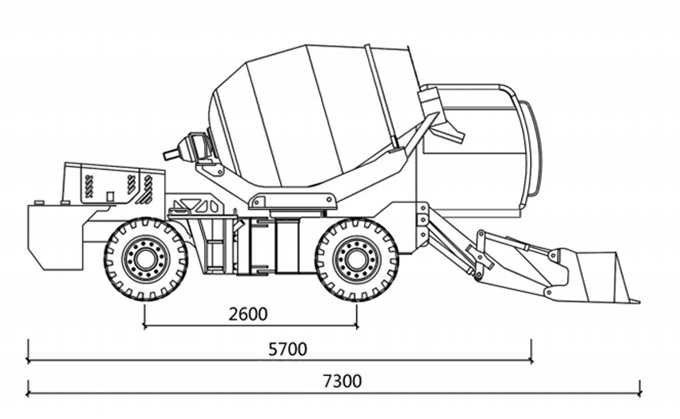

Overall dimensions(L*W*H) | 7300*2600*2750 |
Wheelbase (mm) | 2615 |
Curb Weight (kg) | 5666 |
Drive Form | Torque converter |
Drum rotate | 270º |
Drum Mixing Speed (r/min) | 13 |
Chassis Max.Speed (kn/h) | 30 |
Maximum grade | 30º |
Maximum turning radius (mm) | 5270 |
Minimum ground clearance (mm) | 280 |
