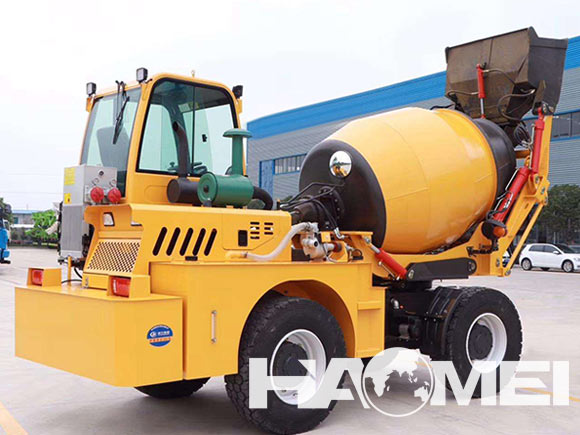

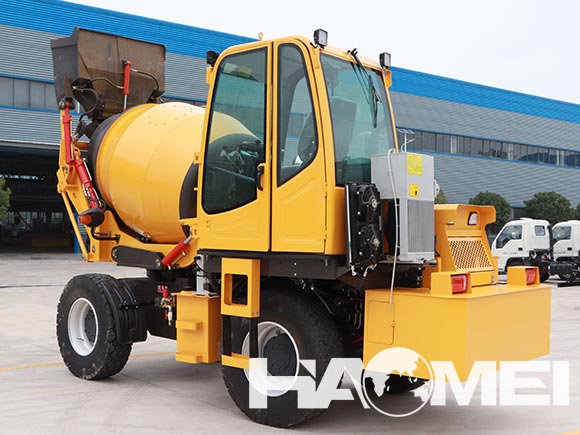

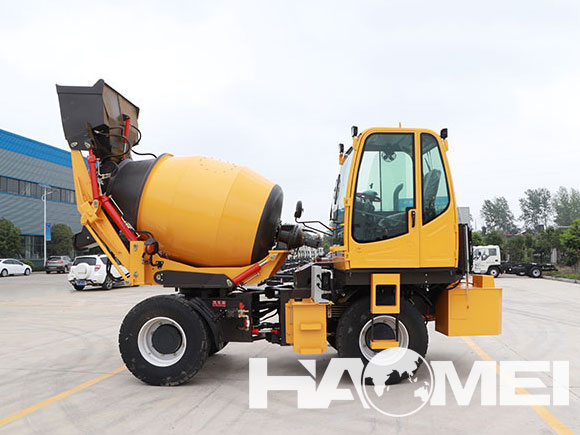

Self Loading Concrete Mixer 1.2 Cubic
-
Equipment Model: 1.2 cubic mobile self loading concrete mixer
-
Discharge Capacity: 1200L
-
Rated Power: 55kw
-
Fuel tank: 63L
Description
1.Description of Self Loading Concrete Mixer 1.2 Cubic:
Mobile self loading concrete mixer is an efficient concrete solution which can automatically fulfill the work of loading, mixing, transportation and unloading. Thus it can replace 4-6 workers and significantly cut the labor cost. The compact design makes it flexible in narrow and limited space.
2.Advantages of Self Loading Concrete Mixer 1.2 Cubic:
(1).Customize your machine according to your needs.
(2).Conventional bucket or clamshell bucket& Skimmer for road or rail use.
(3).Pressure transducers or load cells for weighing.
(4).Alternative environment friendly powertrain solutions and Electric propulsion soon available.
(5).Realizing automatic loading and discharging, largely improve working efficiency and cut down cost.
(6). Short mixing cycle means high productivity and output.
3.We Promise:
(1). One year warranty;
(2). Go to your site and help you install and debug;
(3). Free training for your operator;
(4). Any problem, we will be here to serve you, or go to your city, check and maintain;
(5). Spare parts are in stock, any needs, please leave your message on my website, we will arrange shipment within 48 hours;
(6). Introduce other users to buy our self loading concrete mixers, we will give you some commission.
Above all is our pre-sales service and on-sale service, we also pay much more attention to after-sale service, when our self-loader truck for sale arrived your city, our salesman and engineer will go to your city, and do training for your operator, tell him how to operate the machine and how to do maintenance, and some notes when using the machine, till he can operate the machine successfully. In addition, if later there are some problems in machine, you can ask us for help, we will provide you with an online reply or phone call, even going to help you! You are the first position in our heart, we will try our best to serve you!
Specification
The Parameters of Self Loading Concrete Mixer 1.2 Cubic:
Self Loading Concrete Mixer 1.2 Cubic | |
Specification | Value |
Equipment Model | 1.2 cubic mobile self loading concrete mixer |
Drum geometrical capacity | 1700L |
Discharge Capacity | 1200L |
Engine Model | Yunnei 490 Turbo-Charged |
Rated Power | 55kw |
Gear box model | ZL-265 Power Shift Gearbox |
Gear | 4 forward 4 back |
Fuel tank | 63L |
Total hydraulic system capacity | 63 liters |
Oil tank | 16 liters |
Reducer | KY07-2-0 |
Hydraulic Pump | FC50/40 |
Hydraulic Motor | BM5-120 |
Water tank | 400L |
Water supply | Time relay |

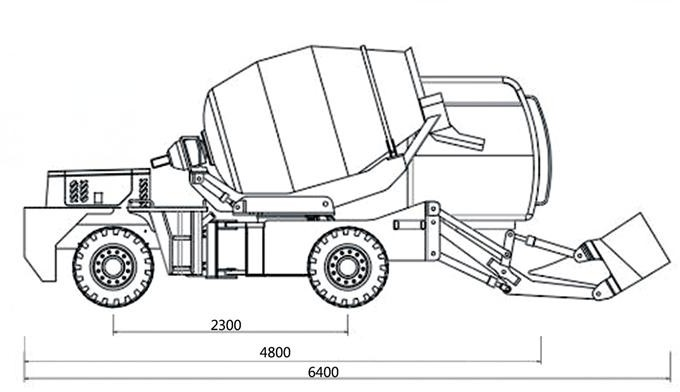

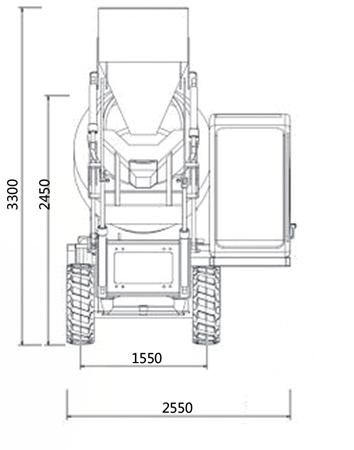

Overall dimensions(L*W*H) | 6400*2550*2450 |
Wheelbase (mm) | 2400 |
Curb Weight (kg) | 4185 |
Drive Form | Torque converter |
Drum rotate | 270º |
Drum mixing speed (r/min) | 13 |
Chassis Max.Speed (kn/h) | 30 |
Maximum grade | 30º |
Maximum turning radius (mm) | 4700 |
Minimum ground clearance (mm) | 280 |
