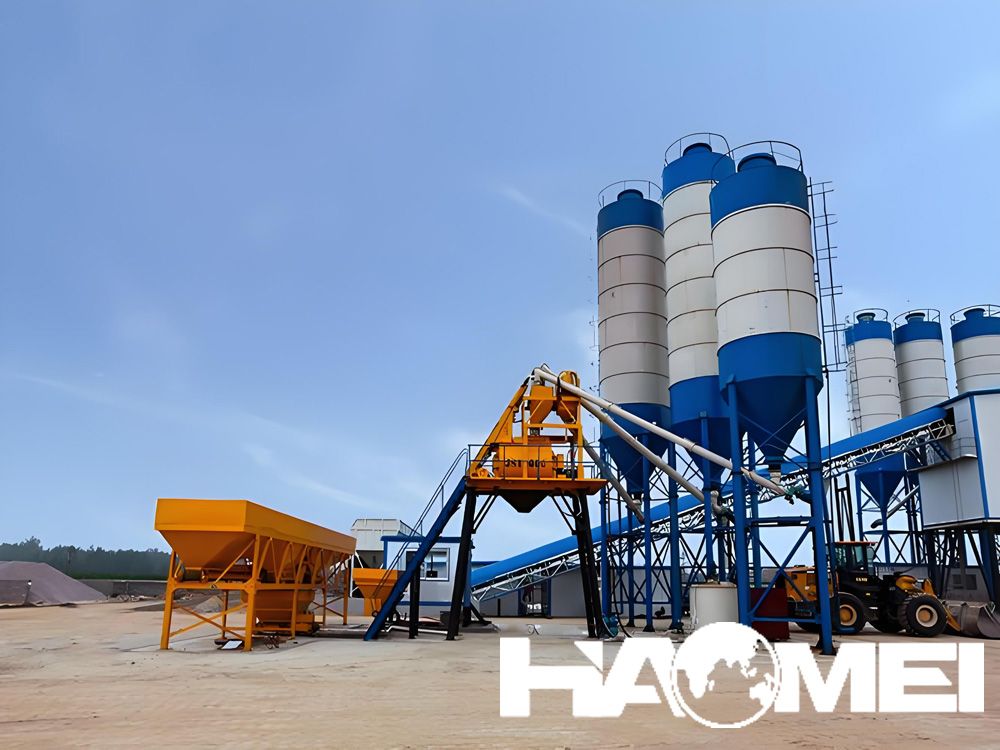

HZS Belt-Type Concrete Batching Plant
What is an HZS Belt-Type Concrete Batching Plant?
The HZS belt-type concrete batching plant is a high-efficiency concrete production system that uses a belt conveyor to transport aggregates from the batching machine to the mixing tower. The term "belt-type" refers to the conveying mechanism used, which differs from traditional bucket elevator systems.
This type of plant typically features a twin-shaft compulsory concrete mixer as its core component, combined with a modular design, precision weighing system, and automated control unit. It offers high capacity, excellent productivity, and uniform concrete quality, making it widely applicable in high-speed railway construction, expressways, water conservancy, airports, and commercial concrete plants.
Five Key Advantages of the HZS Belt-Type Concrete Plant
1. High-Efficiency Conveying to Boost Output
The belt conveyor system ensures continuous material transport with strong stability and easy maintenance. Compared to bucket elevator systems, the belt conveyor is better suited for transporting large aggregate volumes continuously. It reduces the risk of clogging and significantly improves operational efficiency, with theoretical output ranging from 30 m³/h to 240 m³/h or more.
2. Precision Weighing for Consistent Concrete Quality
The HZS belt-type plant is equipped with high-precision load cells and a digital control system for independent and real-time measurement of aggregates, cement, water, and admixtures. It maintains measurement accuracy within industry standards, ensuring stable concrete quality that meets specifications.
3. Modular Design for Easy Installation and Maintenance
This plant features a modular layout, enabling segmented installation of aggregate bins, belt corridors, main structure, and control room. This greatly reduces on-site setup time. The overall design is streamlined for easy maintenance and future expansion.
4. Smart Control System for Automated Operation
A modern industrial-grade computer platform manages the entire process from feeding and batching to mixing and discharging. Remote operation, data tracing, and fault alarm functions ensure safe, efficient operation with minimal manual intervention.
5. Wide Adaptability for Various Projects
Whether in urban commercial concrete stations or remote construction sites such as bridges, highways, and water conservancy projects, the HZS plant adapts to diverse environments and reliably delivers high-quality concrete for intensive project demands.
Popular HZS Belt-Type Plant Configurations
| Model | Theoretical Capacity (m³/h) | Mixer Model | Aggregate Bin Capacity | Application Scenarios |
| HZS60 | 60 | JS1000 | 4X10m³ | Small to medium commercial concrete, foundation projects |
| HZS90 | 90 | JS1500 | 4X15m³ | Urban construction, expressways |
| HZS120 | 120 | JS2000 | 4X20m³ | Subways, airports, water conservancy |
| HZS180 | 180 | JS3000 | 4X25m³ | Large bridges, central batching plants |
Application Scenarios
HZS belt-type concrete batching plants are widely used in projects requiring high concrete volumes and quality, including:
Large Infrastructure Projects: Airports, ports, expressways, railways, bridges, and tunnels
Urban Development: High-rise buildings, residential communities, commercial complexes
Water Conservancy Projects: Dams, reservoirs, power stations
Commercial Concrete Suppliers: As core production equipment for supplying concrete to various construction sites
Why Choose Us?
✅ Factory Direct Sales: In-house production from design and manufacturing to commissioning, ensuring better pricing and full process control
✅ Custom Solutions: Flexible design options including belt length, tower height, and bin capacity to meet specific project needs
✅ Technical Support: Expert engineering team provides on-site installation, remote diagnostics, and operator training
✅ Export-Ready Quality: Proven durability with successful exports to Southeast Asia, the Middle East, Africa, and South America
