Mobile mixing plant composition organization

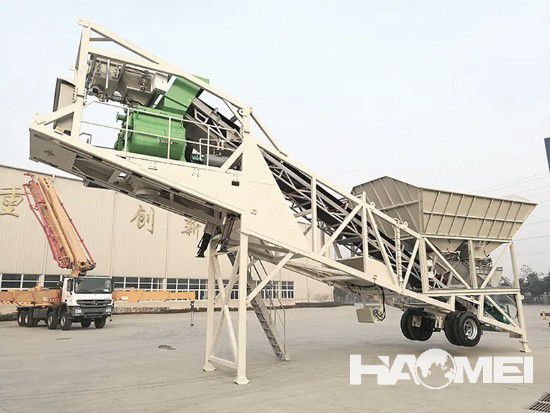

The mobile concrete mixing plant developed and produced by Haomei Machinery has a compact structure, integrating aggregate, weighing, lifting, and mixing. Especially, the hopper of the batching machine is arranged in a trapezoidal shape, occupying less space. It is fast and convenient to move, as long as the main frame is located on the truck for traction and movement, saving labor and time and improving production efficiency.

The mobile mixing plant is a concrete production equipment specifically developed and produced for engineering projects that require frequent site transitions. It has strong working capacity and can adapt to different site environments, with low foundation requirements, thus being highly welcomed by customers. So, what are the components of the mobile mixing plant? Let's introduce them to you in detail.

1.Aggregate batching system

Aggregate measurement adopts cumulative measurement, which is accurate and reliable. Usually, there are two aggregate storage bins, which are suitable for the aggregate requirements of general projects. Equipped with high-precision sensors and automatic compensation for drop, it ensures the accuracy of aggregate measurement.

2.Unlike the fixed mixing plant models, the mobile concrete mixing plant uses belt conveyor for feeding, so the selection of mixing machine models does not include hoppers (each manufacturer has different names for this type). Therefore, the production efficiency of the mobile mixing plant is actually higher than that of the same model mixing plant, with a discharge height of 3.8 to 4.1 meters.

3.Control system

The whole mixing plant adopts industrial control computer for microcomputer control system. It is easy and convenient to operate. The interface simulates and displays the entire dynamic process of the mixing plant, which is very intuitive. It can store various proportions and working data of the mixing plant, and print various types of reports as required. The temperature-controlled containerized control room adopts soundproof and heat-insulated color sandwich panel, spacious and bright, aesthetically pleasing, while ensuring the working environment temperature of electrical components, greatly improving the comfort of operators.

4.Weighing system

The transportation of cement powder, water, and admixtures, as well as the weighing process, is the same as the equipment involved in ordinary mixing plants. The powder is stored in the cement silo and transported to the weighing hopper by a spiral conveyor. Water is pumped from the water tank, and admixtures are pumped from the additive tank to the weighing hopper above the mixing plant. After all the raw materials are weighed, they can be mixed in the mixer.

The above is Haomei Machinery's introduction to the composition of the mobile mixing plant. If you want to learn more about concrete mixing plants, please feel free to contact us through the form below or email, and our customer manager will answer your questions as soon as possible
