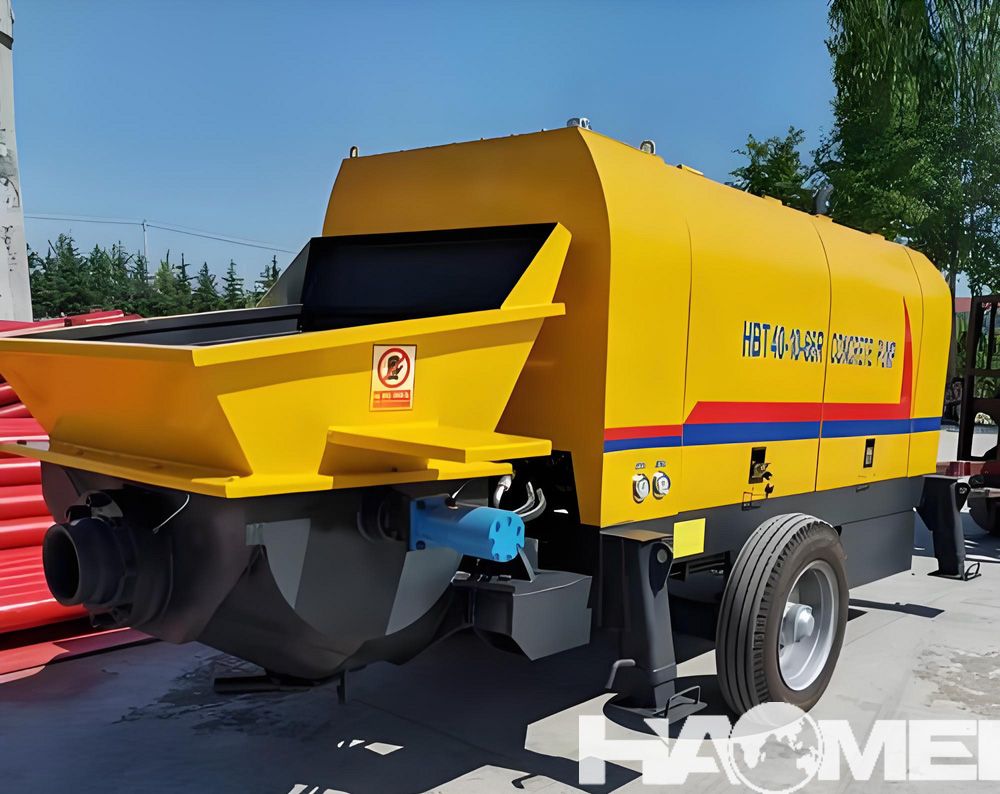

40 m³/h Mobile Concrete Trailer Pump

HAOMEI Machinery has launched a 40 cubic meters per hour trailer concrete pump, which has gained wide recognition in medium-sized construction projects, infrastructure development, and concrete pouring applications. With moderate output capacity and outstanding cost-performance, this model strikes a balance between efficiency and affordability.

A concrete pump is a machine that uses mechanical pressure to convey concrete from the mixer to the construction site. Its main advantages lie in fast, efficient, and continuous concrete delivery. A trailer concrete pump, as the name implies, is a movable pumping device mounted on a chassis that can be transported via tires or tracks, making it ideal for various construction environments.

Performance Specifications of the Trailer Concrete Pump

Maximum Output: 40 m³/h

Maximum Delivery Pressure: 8-10 MPa (depending on model)

Delivery Pipe Diameter: φ100-φ125 mm

Vertical Pumping Height: up to 80-100 m

Horizontal Pumping Distance: up to 200-250 m

Power System: Diesel or electric drive, adaptable to different on-site power conditions

Technical Features of the Mobile Concrete Pump

• S-Valve System:
  Excellent sealing performance and reliable material distribution, suitable for various grades of concrete.

• Hydraulic Main Pump:
  Provides stable and powerful output, ensuring consistent pumping pressure and flow.

• Automatic Lubrication System:
  Continuously supplies oil to key moving parts such as pistons and mixing shafts, extending the lifespan of wear components.

• PLC Control System:
  Features self-diagnostic functionality, intuitive interface, and simplified operation, reducing human error.

• Diesel/Electric Dual Drive Options:
  Adaptable for both urban and remote sites, ensuring smooth operation even in areas with limited power supply.

Working Principle of the Mobile Concrete Pump

The core of the mobile concrete pump is its hydraulic pumping system, which consists of the pump body, hydraulic system, hopper, conveying pipeline, and power unit.

1. Concrete Feeding
Concrete enters the hopper from the mixer. A built-in vibration device prevents blockage and ensures smooth material flow.

2. Hydraulic Pumping
The hydraulic system drives the piston pump to pressurize the concrete and push it through the conveying line. The twin-piston design ensures steady and continuous delivery while minimizing segregation and air bubbles.

3. Pipeline Conveying
The concrete travels through high-strength steel pipes or flexible rubber hoses, with delivery distance adjustable according to site layout.

4. Final Placement
Concrete is discharged at the pipe outlet, and workers can control the pouring position precisely to achieve accurate placement.

Compared with traditional manual concrete transport, a concrete pump dramatically improves construction efficiency, reduces labor intensity, and shortens project timelines.

Why Choose a Trailer Concrete Pump?

1. High Construction Efficiency

With a pumping capacity of 40 m³/h, it meets the continuous pumping requirements of medium-sized projects, significantly improving productivity.

2. Strong Mobility

The mobile design allows quick relocation across different job site zones without the need for fixed pipelines, suitable for various terrains and conditions.

3. Easy Operation

Equipped with an intelligent control system and hydraulic operation interface, pumping parameters can be adjusted easily, reducing operator workload.

4. Wide Range of Applications

Applicable to residential buildings, commercial complexes, roads, bridges, tunnels, basements, and hydraulic projects.

5. Lower Construction Costs

By replacing manual concrete handling, it minimizes labor costs, saves time, and shortens construction periods.

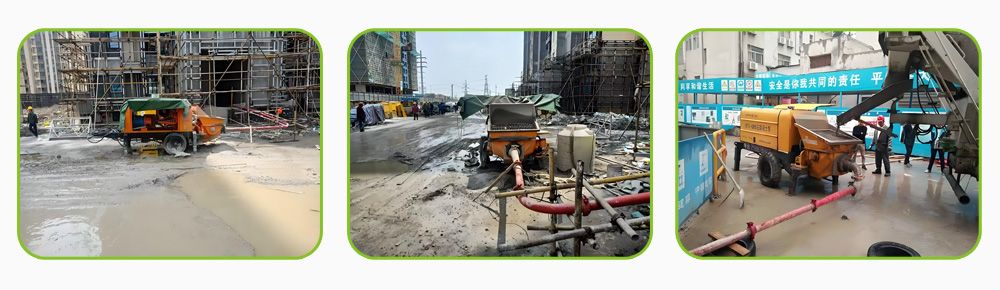

Applications

• Residential and Commercial Building Projects

• Road and Bridge Construction

• Tunnel and Underground Engineering

• Hydraulic and Water Conservancy Projects
